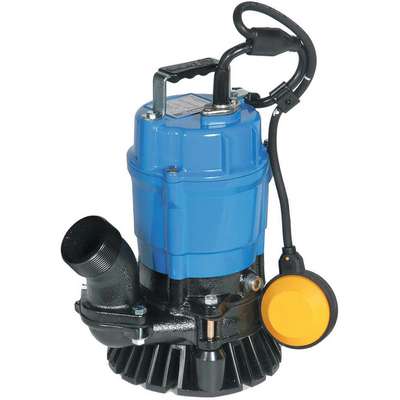

1/2 HP Construction Site/Residential Dewatering Pump with 120VAC Voltage and Discharge NPT 2", 20 f

1/2 HP Construction Site/Residential Dewatering Pump with 120VAC Voltage and Discharge NPT 2", 20 f

#913445-2 | Pkg Qty: 1

$370.03 pkg | $370.03 ea
Item Number 913445-2
Scanner Description Automatic Trash Pump,1/2 Hp,
Inventory Status Drop Ship Item
Weight 29.25 lb
Brand TSURUMI

Technical Specifications

Agency Compliance
Etl/Cetl
Item
Construction Site/Residential Dewatering Pump
Amps
5.4 AC
Length
15-1/8 in.
Application
Nonflammable Liquids
Manufacturers Warranty Length
2 yr.
Base Material
PVC
Max. Dia. Solids
1/4 in.
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Max. Diameter Solids
1/4 in.
Brand
TSURUMI
Max. Head
39 ft.
Cord Length
20 ft.
Max. Head - Pumps
39 ft.
Cord Size
16/3
Max. Head- Pumps
39 ft.
Cord Type
3-Conductor STOW, Resists Water and Oil
Max. Liquid Temperature
104°F
Diameter
13-1/2 in.
Mfr. Part Number
HSZ2.4S-62
Discharge NPT
2 in.
Min. Sump Pit Dia.
21 in.
Duty
Continuous
Motor Housing
Die Cast Aluminum
Features
Dewatering
Motor RPM
3320
For Use With
Nonflammable Liquids
Motor Type
PSC
Function
Dewatering
Pack Quantity
1
GPM @ 1 Ft. of Head
53
Phase
1
GPM of Water @ 10 Ft. of Head
46
Pump HP
1/2
GPM of Water @ 15 Ft. of Head
40
Pump RPM
3320
GPM of Water @ 20 Ft. of Head
35
Pump Type
Construction Site and Residential Dewatering
GPM of Water @ 25 Ft. of Head
28
RPM
3320
GPM of Water @ 30 Ft. of Head
20
Shaft Material
Stainless Steel
GPM of Water @ 35 Ft. of Head
10
Shaft Seal
Silicone Carbide
GPM of Water @ 5 Ft. of Head
53
Shaft Seal Material
Silicone Carbide
HP (Horsepower)
1/2
Suction
Screened Bottom
Handle
Top Carrying
Switch Type
Float
Height
15-1/8 in.
Thermal Protection
Automatic
Housing
Die Cast Aluminum
Top Material
Die Cast Aluminum
Housing Material
Die Cast Aluminum
Type
Construction Site and Residential Dewatering
Hz
60
Voltage
120 VAC
Impeller Material
Urethane Rubber
Warranty
2 Years
Input Phase AC
1
Width
13-1/2 in.
Insulation Class
E

Product Description

These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites and accept an inlet hose so they don't have to be placed in the water that needs to be drained. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
