SPEEDAIRE

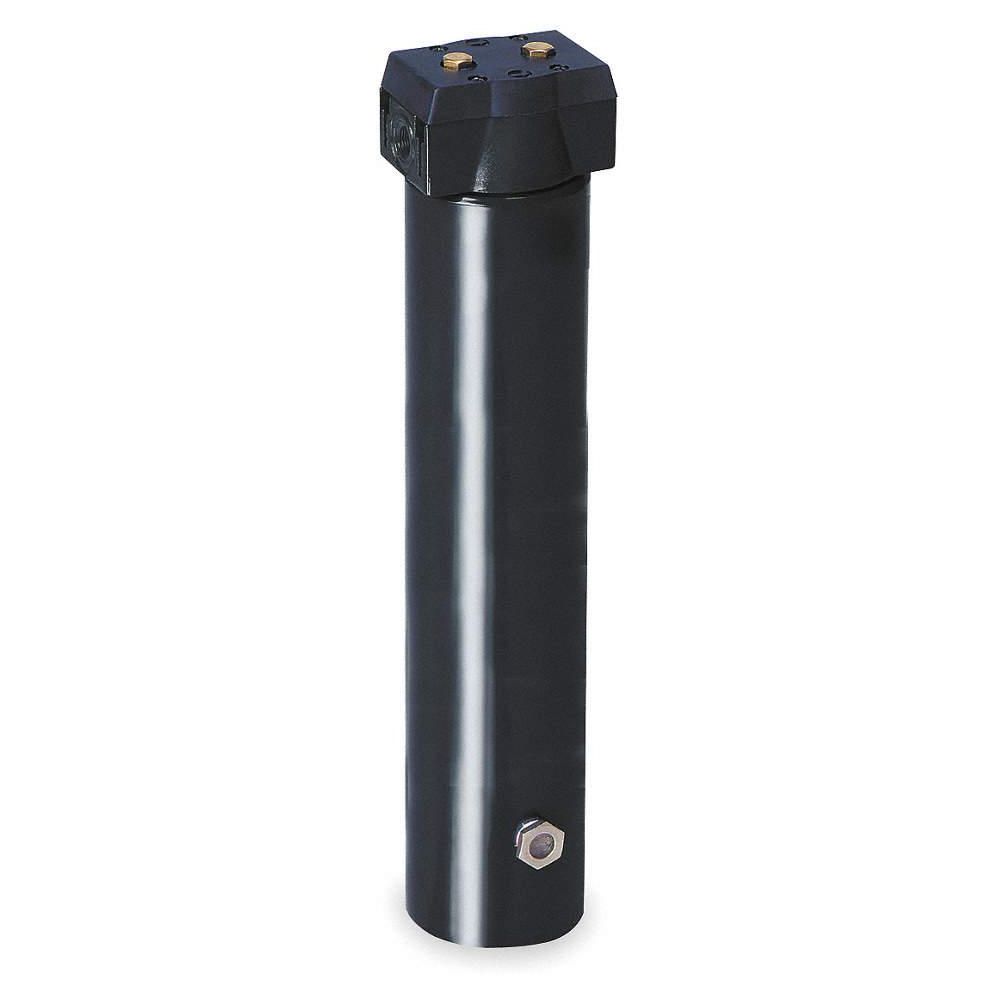

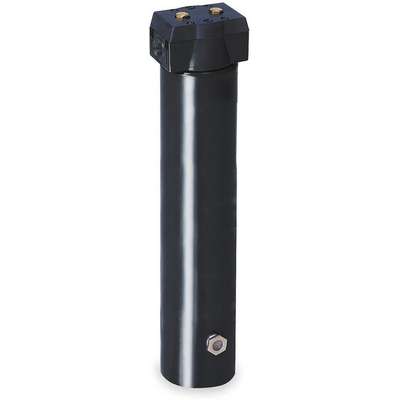

Desiccant Air Dryer: ISO Class 3, 1/2 in NPT, 25 cfm, 200 psi Max Op Pressure, 15 micron
Hover over image to magnify
#913409 | Pkg Qty: 1
$1,574.45 pkg | $1,574.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Inlet
1/2 in.
Item
Desiccant Air Dryer
(M)NPT Outlet
1/2 in.
Maximum Operating PSI
175
Air Consumption
scfm
Maximum SCFM @ 100 PSI
25 psi
Bowl
Rugged Metal
Mfr. Part Number
5VC91
Brand
SPEEDAIRE
Package Quantity
1
CFM
25
Shipping Weight
12.6 lb.
ISO Class
3
Width
4-1/8 in.
General
Air Inlet Gender
Female
Filter Included
No
Air Inlet Type
NPT
Filtered Substance
Dirt, Dust, Oil, Water
Air Outlet Gender
Female
ISO Class - Air Treatment
3
Air Outlet Size
1/2 in
Includes
Modular Connection Kit, Mounting Bracket
Air Outlet Type
NPT
Max. Flow - Air Treatment
25 cfm
Application
Branch Lines
Max. Incoming Pressure - Air Treatment
175 psi
Bracket Kit Included
No
Maximum Flow @ 100 psi
25
Connection Size - Air Treatment
1/2 in NPT
Number of Air Inlets
1
Desiccant Material
Silica Gel
Number of Air Outlets
1
Dew Point (Deg. F)
-4
Total Air Capacity
11,000 cu ft
Dew Point - Air Treatment
-4°F
Total Capacity (Cu.-Ft.)
11,000
Filter Element Compatibility
HF5-12-4DPL
Total Capacity - Air Treatment
11,000 cu ft
Product Description
Ideal for drying small volumes of air at the point of use. Protect branch lines exposed to temperatures below freezing. Convenient in-line mounting saves space. Premeasured desiccant packaged in convenient, easy-to-use bags for less waste. ISO Class dryer capacities established at 100°F ambient temp., 100 psig.
Expertly Selected Product Pairings
Item Barcode
Dryer,Silica Gel
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5VC91 | Dryer,Silica Gel |
 | UNSPSC CODES | 40161509 | |
 | VMRS (ATA) CODES | 053-008-004 | Dryer,Silica Gel |
