WESTWARD

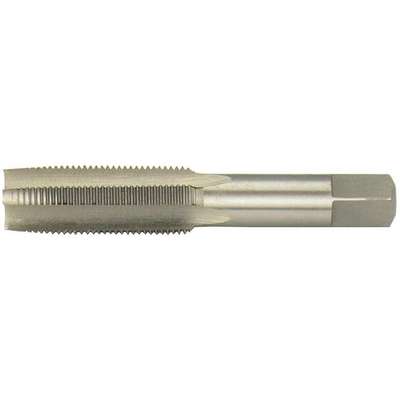

M12-1.75, Tap, Right Hand, Bottoming, 4 Flutes, Carbon Steel, Uncoated Tap Finish

Hover over image to magnify
Hand Tap,Bottom,Carbon Steel,
Hand Tap,Bottom,Carbon Steel,

#913370-1 | Pkg Qty: 1

$4.77 pkg | $4.77 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
WESTWARD
Shank Diameter
23/64 in.
Cutting Direction
Right
Shipping Weight
.3 lb.
Cutting Direction
Right Hand
Square Size
0.275 in.
Drill Bit Size
13/32 in.
Subgroup | Tap
Straight Flute
Finish
Uncoated
Tap Chamfer
Bottoming
Flutes
4
Tap Dimension Type
Metric
Item
Straight Flute Tap
Tap Finish
Bright (Uncoated)
Material
Carbon Steel
Tap Material
Carbon Steel
Mfr. Part Number
2LXP7
Tap Size
M12
Number of Flutes
4
Tap Style
Straight Flute
Number of Pieces
1
Tap Thread Size
M12-1.75
Overall Length
3-3/8 in.
Tap Thread Type
Metric Coarse
Pack Quantity
1
Thread Direction
Right Hand
Pitch
1.75 mm
Thread Length
1-21/32 in.
Pitch Diameter Limits
D6
Thread Type
Metric Coarse
Primary Material Application
All Materials
Type
Bottoming
Series
312-3623
General
Application
Use For Hand Tapping Applications
Standards
ASME
Coolant Fed
Non-Coolant Through
Tap Grouping
Individual
Measurement System
Metric
Thread Pitch
1.75mm
Shank Dia.
23/64 in
Thread Standard
Metric Coarse
Shank Type - Machining
Straight

Product Description

Taps and Dies

  • Fully ground Custom-fit, blow-molded case
  • Quickly restore or create internal or external threads in a wide range of sizes. Use on UNC, UNF, NPT, and NPTF threading. Include threading specialties for tapping drill sizes. Meet American Metal Cutting Institute Standards for cut thread tolerance and ANSI-B94-1987 standards.
