INGERSOLL RAND

2-Stage Splash Lubricated Air Compressor Pump with 41 oz. Oil Capacity

Hover over image to magnify

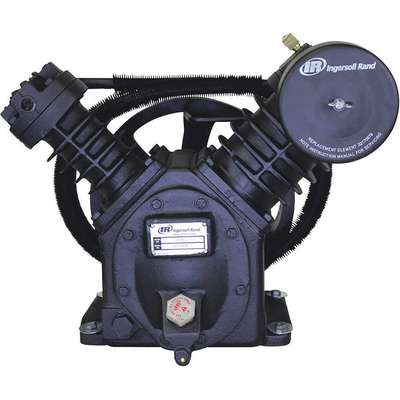

Air Compressor Pump,2 Stage
Air Compressor Pump,2 Stage
2-Stage Splash Lubricated Air Compressor Pump with 41 oz. Oil Capacity Video

#913362-6 | Pkg Qty: 1

$2,059.95 pkg | $2,059.95 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
(F)NPT Outlet
1/2 in.
Overall Depth
21-1/2 in.
Brand
INGERSOLL RAND
Overall Height
17-3/16 in.
Construction
Cast Iron
Overall Width
19-11/16 in.
Flywheel Diameter
13-1/2 in.
Package Quantity
1
Free Air CFM @ Max Pressure
16.8/24.0
Pump RPM
1040, 1500
Groove Quantity
1
Rotation
CW
Horsepower
5, 7-1/2 HP
Sheave Size @ 1725 RPM
8-15/16 in., 5-15/16 in.
Item
Air Compressor Pump
Shipping Weight
210 lb.
Lubrication Type
Splash Lubricated
Stroke Length
2-3/4 in.
Maximum Pressure
175 psi
Type
Splash Lubricated, Type 30 Air Compressor
Mfr. Part Number
2475
Valve
Inlet/Outlet Finger, Provides Superior Service for Longer Life
Number of Cylinders
2
Valve Material
Stainless Steel
Number of Stages
2
Valve Type
Finger
Oil Capacity
41 oz.
General
Bore Dia.
2 1/2 in, 4 in
Lubrication Required
Yes
Flywheel Included
Yes
Maximum Output Power
5 hp, 7.5 hp
Free Air CFM @ Max. Pressure
16.8/24.0
Number of Grooves
1
Free Air Flow Rate @ Maximum Pressure
24.0 cfm @ 175 psi
Outlet Connection Type
NPT
HP
5 hp, 7 1/2 hp
Pump Speed
1,600 RPM

Product Description

Durable, cast-iron cylinder, head, and frame are designed for continuous operation and extended pump life. Overhung crankshaft is precision balanced to run smoothly and quietly. 1-pc. connecting rod. Cylinder can be removed for easy repair and service..
