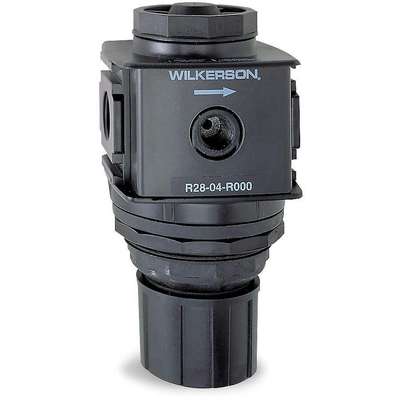

3/8" General Purpose Air Regulator , 95 cfm Max. Flow - Regulators

3/8" General Purpose Air Regulator , 95 cfm Max. Flow - Regulators

#913361-4 | Pkg Qty: 1

$64.50 pkg | $64.50 ea
Item Number 913361-4
Scanner Description Regulator,3/8 In
Inventory Status Drop Ship Item
Weight 2.35 lb
Brand WILKERSON

Technical Specifications

Adjustment
0 to 125 psi
Mfr. Part Number
R28-03-F000
Adjustment Knob
Non Rising Locking
NPT
3/8 in.
Air Consumption
scfm
Overall Height
5.9 in.
Brand
WILKERSON
Overall Width
2.9 in.
Item
General Purpose Air Regulator
Pack Quantity
1
Maximum Flow
95 cfm
Pipe Size
3/8 in.
Maximum Inlet Pressure
300 psi
Series
Standard
Maximum Pressure
300 psi
Type
Modular
Maximum Temperature
150 deg. F

Product Description

The 2-gauge ports can be used as additional regulated outlet ports. Regulator can be serviced without removal from air line. For the Max. Flow, the CFM is measured with 100 psig inlet adjusted to a set pressure of 90 psig and a 15 psig pressure drop. For the Adjustment Range, the working range of knob adjustment is designed to permit outlet pressures within their full range. Pressure adjustment beyond this range is also possible because the knob is not a limiting device. This is a common characteristic of most industrial regulators, and limiting devices may be obtained only by special design. WARNING: Do not connect regulator to bottled gas.

Item Barcode
9133614
  Name Item Description
Grainger Dropship Grainger Dropship 6B210 Regulator,3/ 8 In
UNSPSC CODES UNSPSC CODES 27131603
VMRS (ATA) CODES VMRS (ATA) CODES 043-004-056 Regulator,3/ 8 In
