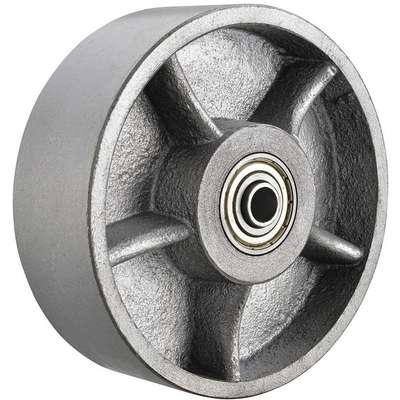

6" Caster Wheel, 6000 lb. Load Rating, Wheel Width 3", Ductile Iron, Fits Axle Dia. 1"

Hover over image to magnify
Caster Wheel,6 D x 3 In. W,
Caster Wheel,6 D x 3 In. W,

#913341-5 | Pkg Qty: 1

$89.40 pkg | $89.40 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Caster Wheel
Caster Core Material
Ductile Iron
Load Rating
6000 lb.
Caster Load Rating Range
Extra Super Duty
Mfr. Part Number
P-D-060X030/100R
Caster Temperature Range
Up to 800 deg. F
Non-Marking
Yes
Caster Temperature Range Available
Yes
Package Quantity
1
Caster Wheel Bearings
Roller
Shipping Weight
11.5 lb.
Caster Wheel Shape
Standard
Temperature Range
Up to 800 deg. F
Caster Wheel/Tread Material
Ductile Iron
Wheel Bearings
Roller
Core Color
Black
Wheel Color
Black
Core Material
Ductile Iron
Wheel Diameter
6 in.
Durometer
Brinell 145
Wheel Material
Ductile Iron
Fits Axle Diameter
1 in.
Wheel Width
3 in.
Hub Length
3-1/4 in.
General
Bore Dia.
1"
Tread Shape
Standard
Core Width
3 1/4 in
Wheel Bearing Type
Roller
Fits Axle Dia.
1 in
Wheel Core Material
Plastic
For Axle Size
1/2 in
Wheel Dia.
6 in
Hub Width
3-1/4"
Wheel/Tread Hardness
190-230 BHN
Includes Spanner Bushing
Not Included
Wheel/Tread Material
Ductile Iron
Load Rating Range
6,000 lb and Greater

Product Description

Iron tread wheels provide smooth rolling under heavy loads. They have excellent resistance to abrasion and shock, and they are suitable for rough surfaces such as concrete and wood block floors. Iron wheels withstand exposure to corrosive chemicals, grease, or oils better than steel. They also resist extreme temperatures. They are used in warehousing and manufacturing applications. Iron will rust if exposed to water, so these wheels are best suited for dry environments.

Metal tread wheels offer very high weight capacities and can withstand shock, abrasion, impact, rough use, and exposure to temperature extremes. The wheels' tread and core are manufactured as one piece from the same material. These wheels are suitable for use on carts, racks, trucks, trolleys, and similar equipment that will be carrying heavy loads over broken floors or debris. Metal tread wheels are heavier than wheels with rubber or plastic treads and are more likely to damage floors.
