HUBBELL WIRING DEVICE-KELLEMS

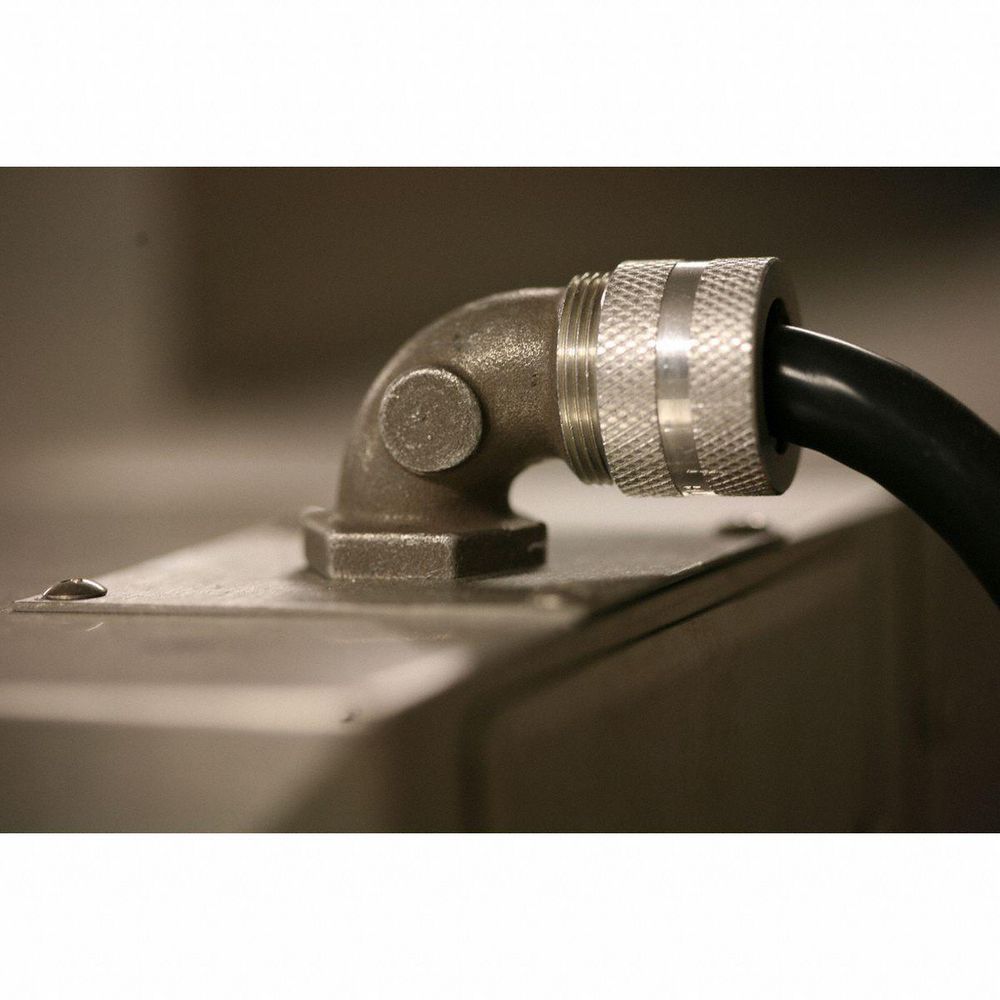

Hubbell Wiring Device-Kellems Liquid Tight Cord Connector, 0.63" to 0.75" Cord Dia., 3/4" MNPT Box Connection
Hover over image to magnify
#913229-6 | Pkg Qty: 1
$28.80 pkg | $28.80 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Color
Silver
Length
2-51/64 in.
Body Material
Aluminum
Material
Aluminum
Box Connection
3/4 in. MNPT
Material of Construction
Aluminum
Brand
HUBBELL WIRING DEVICE-KELLEMS
Maximum Operating Temperature
225 deg. F
Collar Material
Aluminum
Mesh Length
No Strain Relief Mesh
Color Family
Yellow
Mesh Material
No Strain Relief Mesh
Conduit Size
3/4 in.
Mfr. Part Number
NHC1037
Connector Type
90°
Minimum Operating Temperature
-30 deg. F
Cord Diameter Range
0.63 in. to 0.75 in.
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Gland Color Code
Yellow
Number of Cords
1
Hazardous Location Rating
Not Rated
Package Quantity
1
Hub Size
3/4 in.
Shipping Weight
.01 lb.
IP Rating
IP66
Thread Size
3/4 in.
Insulated
No
Thread Type
NPT
Item
Liquid Tight Cord Connector
Type
Strain Relief
General
Compatible Conduit Trade Size
3/4 in
Form Size
F3
Compatible Conduit Type
Liquid Tight Cord Connector
Length - Box to End of Connector
1 13/16 in
Connection Orientation
90 Degrees
Liquid Tight
Yes
Environmental Rating
Hazardous Locations
Standards
CSA LR27378/UL E54218(M)
External Strain Relief Length
No External Strain Relief
Strain Relief Type
No External Strain Relief
For Maximum Cable OD
0.75 in
Style - Connector
90°
For Minimum Cable OD
0.63 in
Thread Gender
Male
For Use With
Kellems Wire Management
Thread-Type
NPT Thread
Product Description
The proprietary split-hinge Gotcha® ring, color-coded by cord size, grips the conductor through the cord jacket. The factory-lubricated bushing provides even compression, ensures a liquidtight seal around the cord, and minimizes tension on the terminals. Machined metal is more durable and reliable than cast metal.
