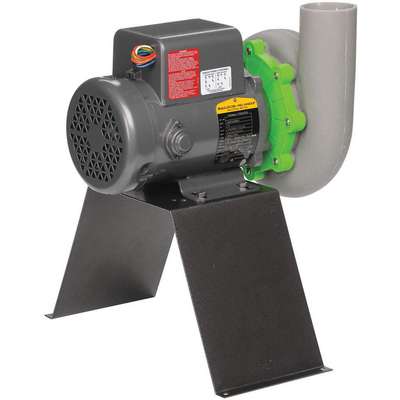

Blower, Direct Drive Forward Curve, Wheel Dia. 5.8", Motor HP 1/3 hp, 3 Phase

Hover over image to magnify
Blower,D/D,230/460V,1/3 Hp
Blower,D/D,230/460V,1/3 Hp

#913194-8 | Pkg Qty: 1

Shop Category
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:
Shop All Products

Technical Specifications

Key Specifications
Brand
PLASTEC
Pack Quantity
1
Item
Blower
Phase
3
Mfr. Part Number
STORM10ST2P
Rotation
CCW
Motor Enclosure
Totally Enclosed Fan Cooled
Shipping Weight
40 lb.
Motor HP
1/3
General
Applications, Comments
Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals
Includes
Metal Stand
Blower RPM
3,450 RPM
Inlet Dia. (In.)
2.95 in
CFM @ 0.750-In. SP
130
Max. Ambient Temp. (F)
102 Degrees F
CFM @ 1.000-In. SP
125
Max. Inlet Temp. (Deg. F)
140 Degrees F
CFM @ 1.250-In. SP
115
Outlet Dia. (In.)
2.95 in
CFM @ 1.500-In. SP
100
Wheel Dia. (In.)
5.8 in
CFM @ 2.000-In. SP
75
Wheel Width (In.)
2 in
Depth (In.)
14.9 in
Width (In.)
5.31 in
Height (In.)
11.22 in
dBA @ 5 Feet
74.4 dBA

Product Description

Blower, Direct Drive Forward Curve, Wheel Dia.5.8 in, Wheel Width2.0 in, CFM @ 0.750-In. SP 130, 74.4 dBA @ 5 Feet, Max. Inlet Temp. (Deg. F) 140 Degrees F, Max. Ambient Temp. (F) 102 Degrees F, Voltage 230/460, 50/60 Hz, 3 Phase, Full Load Amps 1.1/0.55, Motor HP 1/3 hp, Motor RPM 3,450 RPM, Motor Type General Purpose, Motor Enclosure Totally Enclosed Fan Cooled, Motor Frame 56YZ, Bearing Type Ball Bearing, Shaft Dia.14 mm, Height11.22 in, Width5.31 in

Item Barcode
9131948
Blower,D/D,230/460V,1/3 Hp
 NameItemDescription
Grainger DropshipGrainger Dropship15F586Blower,D/D, 230/460V,1/3
UNSPSC CODESUNSPSC CODES40101601
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Blower,D/D, 230/460V,1/3
