PARKER

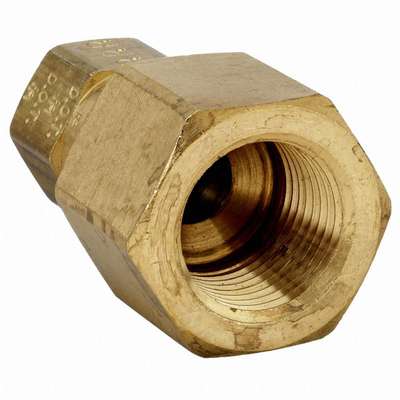

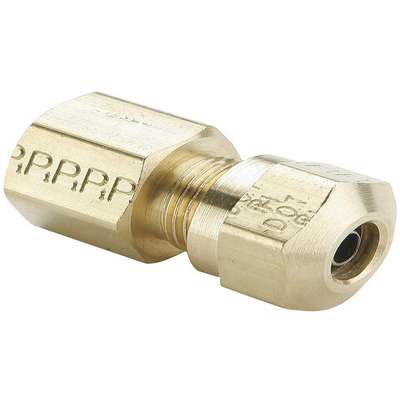

Female Connector: Brass, For 5/8 in Tube OD, 1/2 in Pipe Size, Compression x FNPT, 2 in Overall Lg
Hover over image to magnify
#913082-5 | Pkg Qty: 1
$39.23 pkg | $39.23 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PARKER
Overall Length
2 in.
Connection
Tube x FNPT
Package Quantity
1
Connection Type
Female
Pipe Thread
1/2 in.
DOT Approved
Yes
Pressure
150 psi
DOT Compression Fittings Type
Connectors
Shape
Connector
Hex Size
1-1/16 in.
Shipping Weight
.25 lb.
Material
Brass
Tube Outside Diameter
5/8 in.
Mfr. Part Number
66NTA-10-8
Working Pressure
Up to 150 psi
General
Application
Air
Includes Pre-Applied Thread Sealant
Yes
Compatible Fitting Brands
NTA(R)
Series
NTA
End Connection Type
Compression, Threaded
Specific Fitting Shape
Straight Adapter
Fitting Shape
Adapter
Standards
SAE J246, SAE J1131, DOTFMVSS 571.106
Fitting Side A Connection Type
Compression
System of Measurement
Imperial
Fitting Side A Tube Outer Diameter
5/8 in
Thread Sealant Type
Vibra-Seal 516
Fitting Side B Connection Type
FNPT
Thread Size B
13/16-18
Fitting Side B Pipe Size
1/2 in
Threading Size
13/16-18
Product Description
Brass Air Brake Connectors and Accessories
- Fittings are 1-pc. construction, field serviceable, and reusable. Quick-connect 1800 Series models provide a quick way to easily assemble nylon air brake assemblies. Suitable for use on all brake systems, except where temperatures exceed 200°F or where battery acid can drip on tubing. Not for fuel, water, or oil. Original style 1400 Series fittings are for brake and nylon tubing. For use on all brake systems, except where temperatures exceed 200°F. Compression 1300 Series models are for rigid copper air brake tubing and can be used on all air brake systems.
- Brass Air Brake Connectors and Accessories
- 1-pc. fittings are reusable and easily assembled, no tools required. Compression style fittings come standard with preapplied thread sealant. Both style fittings are for use iwith nylon air brake assemblies. Fittings meet DOT FMVSS 571-106 specifications. Compression style fittings also meet functional requirements of SAE J246 and SAE J1131.
