TJERNLUND

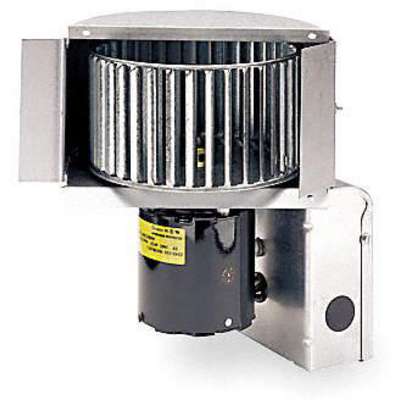

Tjernlund Galvanized Steel Inline Duct Booster, Fits Duct Dia. 5 to 8", Voltage 120 V

Hover over image to magnify
Inline Duct Booster,7 In. L,
Inline Duct Booster,7 In. L,

#913024-8 | Pkg Qty: 1

$197.04 pkg | $197.04 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
UL Listed
Mfr. Part Number
DB-2
Bearing Type
Sleeve
Motor Enclosure
Totally Enclosed
Brand
TJERNLUND
Mounting Position
Horizontal
Housing Material
Galvanized Steel
Number of Speeds
1
Item
Inline Duct Booster
Package Quantity
1
Length
7 in.
Shipping Weight
7.1 lb.
General
Airflow @ 0.000 in SP
275 cfm
Motor Speed
1,550 RPM
Airflow @ 0.000 in SP - Range
250 to 499 cfm
Nameplate Voltage
120V AC
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Nominal Voltage
120V AC
High-Efficiency Motor
No
Overall Dimensions H x W
8 3/4 in x 9 1/2 in
Includes
Mounting Template
Speed Control Included
Yes
Maximum Inlet Air Temperature
200 Degrees F
Speed Controllable
Yes
Motor Output Power
10.7 W

Product Description

Booster fits in round, square, or flat ducts as shallow as 3-1/4" deep. One 4" x 7" cutout is required. Unit attaches to ductwork with 4 sheet metal screws. Steel housing and wheel. 1/70 HP. The permanently lubricated motor is positioned out of the air stream. Motor shaft should remain horizontal to the floor; mount on bottom of horizontal or side of vertical duct. Not for use with combustion exhaust. Unit may be actuated by Pressure Switch No. 5C968, sold separately. Note: The cfm rating is for 8" dia. pipe. Air flow will decrease slightly with smaller pipe.
