OMRON

Omron 24VDC Coil Volts, General Purpose Relay, 10A @ 120VAC/10A @ 24VDC Contact Rating, Square

Hover over image to magnify

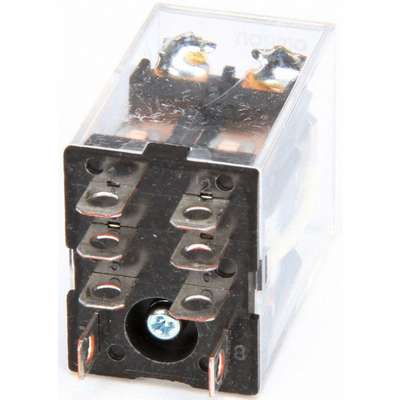

Relay,8 Pins,Dpdt
PI_Asset_1364426
Relay,8 Pins,Dpdt
PI_Asset_1364426
Omron 24VDC Coil Volts, General Purpose Relay, 10A @ 120VAC/10A @ 24VDC Contact Rating, Square Video

#912905-2 | Pkg Qty: 1

$14.01 pkg | $14.01 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 120 V
Mfr. Part Number
LY2-DC24
Base Type
Square
Mounting
Plug In
Body Depth
1.1 in.
Number of Pins
8
Body Height
1.42 in.
Number of Poles
2
Body Width
0.85 in.
Overall Height
1.67 in.
Brand
OMRON
Package Quantity
1
Coil VA Rating
0.9
Pins
8
Coil Volts
24 VDC
Plug-In Relay Style
General Purpose
Contact Amp Rating
7-1/2
Push To Test
Manual
Contact Form
DPDT
Relay Power Consumption
0.9 W
Contact Material
Silver Alloy
Resistive Contact Amp Rating
10
Contact Rating
10 A @ 120 VAC/24 VDC
Shipping Weight
.05 lb.
DC Contact Rating
10 A @ 24 V
Socket
Mfr. No. PTF08A-E
Inductive Contact Amp Rating
7-1/2
Socket Code
D
Input Power Consumption
0.9 W
Status Indicator
No
Item
General Purpose Relay
Type
Standard
General
AC Contact Rating - Relay
10A @ 120V
HP @ 120V
Not Rated
Base Type - Plug In Relay
Square
HP @ 240V
Not Rated
Body Depth - Relay
1.1 in
Mounting - Relay
Plug In
Body Height - Relay
1.42 in
Number of Pins - Relay
8
Body Width - Relay
0.85 in
Overall Height - Relay
1.67 in
Contact Form - Relay
DPDT
Power Consumption - Relay
0.9 W
DC Contact Rating - Relay
10A @ 24V
Socket Code - Relay
D
Features
Arc Barrier Equipped, High Dielectric Strength (2000VAC), Long Dependable Service Life Assured By Ag-Alloy Contacts
Standards
CSA Certified, CE Marked, TUV

Product Description

Exceptional plug-in rely with high dielectric strength (2,000VAC). Manual push to test and arc barrier comes equipped. Has long dependable service life assured by Ag-Alloy contacts. For general purpose applications.

Expertly Selected Product Pairings

Socket,8 Pin,16 Amp
$8.41 pkg | $8.41 ea
Item: 915842-6 | Pkg Qty: 1

Item Barcode
9129052
Relay,8 Pins,Dpdt
 NameItemDescription
Grainger DropshipGrainger Dropship2W930Relay,8 Pins, Dpdt
UNSPSC CODESUNSPSC CODES39122325
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002Relay,8 Pins, Dpdt
