DART CONTROLS

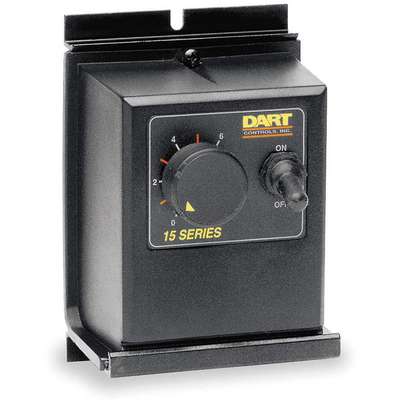

Dart Controls DC Speed Control,NEMA 4/12,100/200VDC Shunt Wound Volts,0 to 90/180VDC Voltage Output,3 Max. Amps
Hover over image to magnify
#912821-7 | Pkg Qty: 1
$256.42 pkg | $256.42 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
cULus Recognized
Operating Temperature
-10 to 45 C
Brand
DART CONTROLS
Output
90180 VDC
Depth
3-1/2 in.
Overall Depth
5-1/2 in.
Enclosure
NE mA 4/12
Overall Height
3-1/2 in.
Enclosure Rating
NEMA 4
Overall Width
3.81 in.
Enclosure Type
Enclosed
Pack Quantity
1
Height
5-1/2 in.
Provides
Superior Wide Range Adjustable Speed Control
Input Voltage
115/230 VAC
Rotation
Single Direction
Item
DC Speed Control
Series
Series 15
Maximum Current
1899-12-31 03:00:00
Shipping Weight
1.02 lb.
Mfr. Part Number
15DVE
Voltage Output
0 to 90/180 VDC
Mount Type
Compact Panel
Width
3.81 in.
NEMA Rating
NEMA 4
General
AC Input Voltage
120/240V AC
Includes
Speed Potentiometer Knob and Dial Plate
Accepts Tach Feedback
No
Linear Acceleration
Fixed 0.5 sec
Current/Torque Limit
None
Lower Voltage Motor Output Power
1/50 to 1/3 hp
DC Speed Control
SCR
Maximum Linear Acceleration
0.5 sec
Dynamic Braking
No
Operates On
50/60 Hertz at +/-10 Percentage Rated Line Voltage
External Switches
ON/OFF
Operating Temp.
-10° to 45°C
Follower Circuit
No
SCR DC Speed Controls
SCR
HP
1/50 to 2/3
Shunt Wound Voltage
100/200V DC
HP @ Higher Volts
1/25 to 2/3
Shunt Wound Volts
100/200V DC
HP @ Lower Volts
1/50 to 1/3
Speed Range
25:1
Higher Voltage Motor Output Power
1/25 to 2/3 hp
Speed Regulation
+/-1% of Base Speed
IR Compensation
Adjustable
Standards
cULus Recognized
Product Description
This DC speed control device provides superior wide-range adjustable speed control, and helps regulate motor speed with adjustable acceleration and deceleration.
Expertly Selected Product Pairings
Documents
Item Barcode
Control,Dc Speed
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5JJ58 | Control,DC Speed |
 | UNSPSC CODES | 39122214 | |
 | VMRS (ATA) CODES | 053-006-009 | Control,DC Speed |
