HUSQVARNA

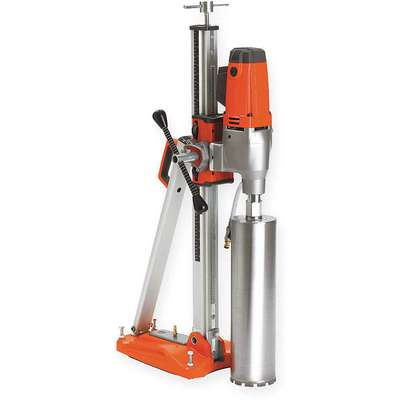

Husqvarna Diamond Coring Rig, 19.3 Amps @ 120V, 2.9 Motor HP, 390/890 No Load RPM
Hover over image to magnify
#912758 | Pkg Qty: 1
$2,928.14 pkg | $2,928.14 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps @ 120 V
19.3
Mfr. Part Number
DMS 240
Brand
HUSQVARNA
Overall Depth
24 in.
Corded/Cordless
Corded
Package Quantity
1
Item
Diamond Coring Rig
Shipping Weight
73 lb.
General
Adjustable Angle
Yes
Maximum Spindle Speed
890 RPM
Angle-to-Surface
60 Degrees
Minimum Spindle Speed
390 RPM
Anti-Kickback Clutch Type
Mechanical
Nominal Voltage
230V AC
Column Diameter
2 1/2 in
Overload Protection Clutch
Yes
Column Height
39 in
Speed Setting
Variable Speed
Core Bit Cap Concrete
10 in
Spindle Decimal Equivalent Screw Size
1.25 in
Core Drill Type
Core Drill Rig
Spindle Screw Size
1 1/4 in
Coring Capacity in Concrete
10 in
Spindle Thread Size
1 1/4"-7 UNC
Features
Two Speed Drill Motor, NEMA L5 20 Amp Plug, Twin Gear Carriage, Electronic Overload Protection, V-Groove Roller Carriage
Spindle Travel
27 in
Includes
Vacuum Plate
Water Inlet Port
Yes
Maximum Core Bit Compatibility
10 in
Product Description
Capable of core drilling in walls and floors up to 10” in diameter. Drills holes for ventilation and plumbing installations, waste evacuation pipes, barriers, and road signs in reinforced concrete, bricks, and other building materials. Offers electronic overload protection and guards against overheating and extends product life.
Expertly Selected Product Pairings
Item Barcode
Diamond Coring Rig,2.9 Hp,120
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3RDN7 | Diamond Coring Rig,2. |
 | UNSPSC CODES | 20102007 | |
 | VMRS (ATA) CODES | 053-006-009 | Diamond Coring Rig,2. |
