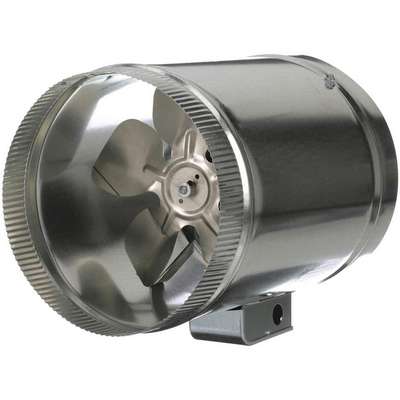

Tjernlund Galvanized Steel Axial Duct Booster, Fits Duct Dia. 10", Voltage 120V

Hover over image to magnify
Axial Duct Booster,15-1/2 In.
Axial Duct Booster,15-1/2 In.

#912702 | Pkg Qty: 1

$229.27 pkg | $229.27 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearing Type
Sleeve
Mfr. Part Number
EF-10
Brand
TJERNLUND
Motor Enclosure
Open Air Over
Housing Diameter
10 in.
Mounting Position
Horizontal or Vertical
Housing Material
Galvanized Steel
Number of Speeds
1
Item
Axial Duct Booster
Package Quantity
1
Length
14-1/2 in.
Shipping Weight
9.3 lb.
General
Airflow @ 0.000 in SP
475 cfm
Motor Output Power
7.5 W
Airflow @ 0.000 in SP - Range
250 to 499 cfm
Motor Speed
1,500 RPM
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Nameplate Voltage
120V AC
For Fan Type
Tubeaxial
Nominal Voltage
120V AC
High-Efficiency Motor
No
Overall Dimensions H x W
15 3/4 in x 10 in
Includes
External Junction Box for Easy Wiring
Speed Control Included
No
Maximum Inlet Air Temperature
150 Degrees F
Speed Controllable
Yes

Product Description

Designed for powered air intake and exhaust systems, or to boost air flow in hard-to-heat or -cool areas. Housing with built-in duct stop on the inlet and crimped edge on the outlet. Compatible with optional Speed Control No. 48C172, sold separately.
