Tanis Strip Brush Holder, H-Shaped, 5/16" Backing Height, 5/16" Backing Width

Hover over image to magnify

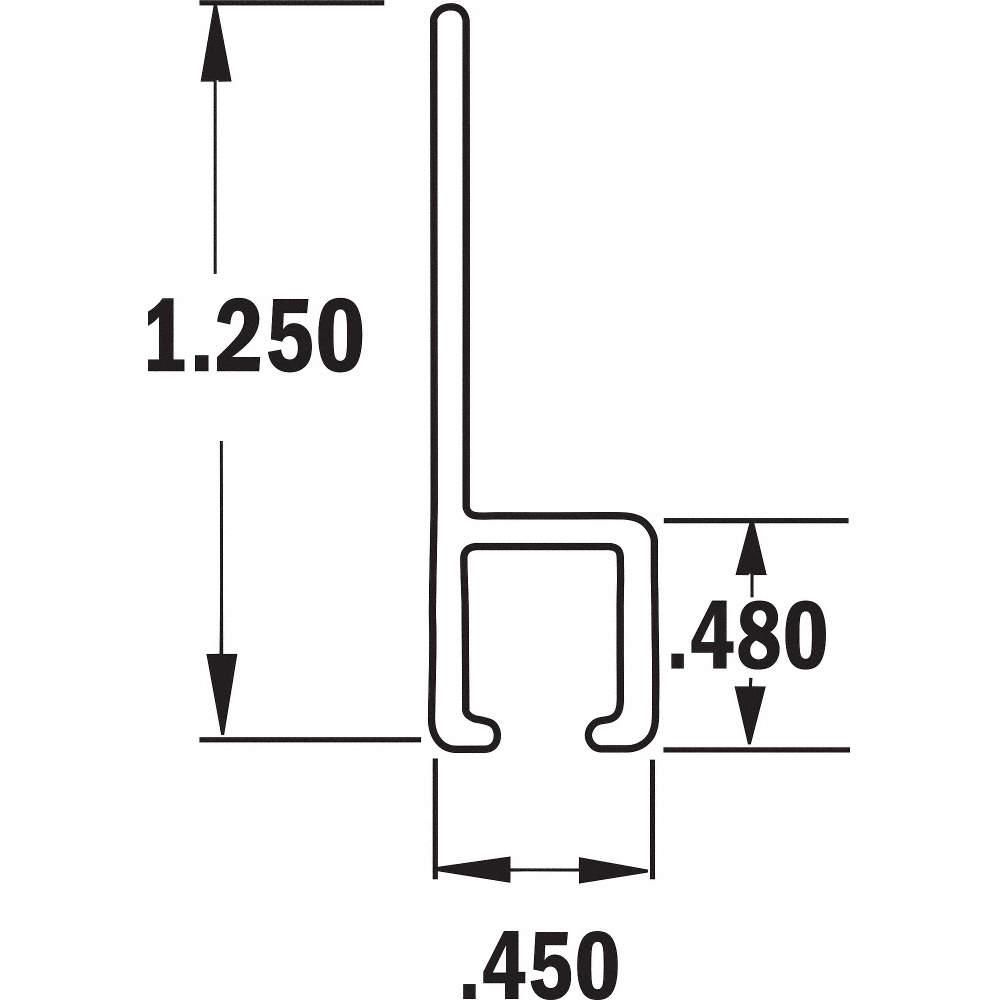

Strip Brush Holder,Overall
Strip Brush Holder,Overall

#912697-6 | Pkg Qty: 1

$25.13 pkg | $25.13 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Backing
Clear Finish Anodized
Mfr. Part Number
AH702872CF
Backing Height
5/16 in.
Package Quantity
1
Backing Material
Aluminum
Profile
H-Shaped
Backing Width
5/16 in.
Shipping Weight
.77 lb.
Brand
TANIS
Type
Aluminum
Item
Strip Brush Holder #7
General
Backing Height (In.)
5/16
Mounting Flange Size
1 1/4 in
Backing Material - Brush
Aluminum
Mounting Flange Size (In.)
1.25
Backing Width (In.)
5/16
Mounting Profile
H-Shaped
For Backing Height
5/16 in
Overall Length (In.)
72
For Backing Width
5/16 in

Product Description

These holders allow compatible strip brushes with rigid backing to be mounted in a variety of orientations in a conveying system to help maximize contact between the brushes and a conveyor. The brush's rigid backing slides into the channel in the holder, and the holder is then surface mounted using drilling or welding. The holder should be compatible with the backing height and width of the strip brush.

Strip brushes are mounted along conveyors to direct and separate items on the conveyor and clean debris from conveyed items and conveyor belts and parts. They are available with rigid metal or flexible plastic backings and can be installed in compatible brush holders for mounting. When the brush is worn, a new brush can be installed in the holder. Brushes with shorter bristle filaments are stiffer, making them suitable for more aggressive applications such as deburring and heavy cleaning. Brushes with longer bristles are more flexible and are a good choice for gentler applications like positioning light objects or dusting. These products are commonly used on conveying systems in warehouses, package handling areas, manufacturing facilities, and distribution centers. They can also be used for non-conveyor applications such as a creating a barrier at the bottom of a door to keep out air, dust, or debris.

Item Barcode
9126976
Strip Brush Holder,Overall
 NameItemDescription
Grainger DropshipGrainger Dropship1VKX6Strip Brush Holder,
UNSPSC CODESUNSPSC CODES24101719
VMRS (ATA) CODESVMRS (ATA) CODES053-010-001Strip Brush Holder,
