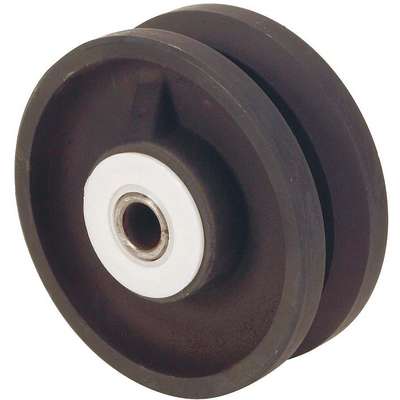

4" Caster Wheel, 800 lb. Load Rating, Wheel Width 2", Cast Iron, Fits Axle Dia. 1/2"

Hover over image to magnify
Caster Wheel,4 D x 2 In. W,800
Caster Wheel,4 D x 2 In. W,800

#912689-9 | Pkg Qty: 1

$20.11 pkg | $20.11 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
800 lb.
Caster Core Material
Cast Iron
Mfr. Part Number
1NWF9
Caster Load Rating Range
Light- Medium Duty
Package Quantity
1
Caster Temperature Range Available
No
Replacement For
1NWC2, 1NWC3, 1NWD5, 1NWD6
Caster Wheel Bearings
Roller
Shipping Weight
3.36 lb.
Caster Wheel Shape
V-Groove
Temperature Range
14 deg. F to 170 deg. F
Caster Wheel/Tread Material
Cast Iron
Wheel Bearings
Roller
Core Color
Black
Wheel Color
Black
Core Material
Cast Iron
Wheel Diameter
4 in.
Fits Axle Diameter
1/2 in.
Wheel Material
Cast Iron
Hub Length
2-3/16 in.
Wheel Width
2 in.
Item
Caster Wheel
General
Bore Dia.
1/2"
Load Rating Range
300 to 999 lb
Core Width
2 3/16 in
Tread Shape
V-Groove
Fits Axle Dia.
1/2 in
Wheel Bearing Type
Roller
For Axle Size
1/2 in
Wheel Core Material
Iron
Hub Width
2-3/16"
Wheel Dia.
4 in
Includes Spanner Bushing
Not Included
Wheel/Tread Material
Iron

Product Description

V-groove track wheels have a molded V-groove on their wheel treads that mates with a compatible angle-iron track to provide precise control of movement and alignment when the wheels roll along the track. The wheels have flat edges and can also be used on flat surfaces. V-groove track wheels are used on carts, containers, racks, doors, or similar equipment.

Track wheels fit into compatible tracks or rails. They are used on equipment such as containers, racks, and carts to provide precise control over movement and alignment when moving the equipment between two locations, such as from one machine to another, into and out of an oven, or between points on an assembly line. Track wheels are suitable for environments that require tightly controlled movement of large, heavy equipment along a predetermined path, including foundries, manufacturing plants, and mines.
