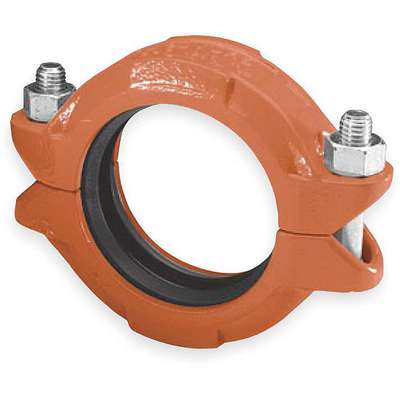

2" Nominal Size Ductile Iron Standard Coupling

Item Number 912661
Scanner Description Coupling,2 In,2 3/8 In Od,
Weight 3.07 lb
Brand GRUVLOK
Pkg Qty: 1
$28.90 pkg | $28.90 ea

Add to List

Technical Specifications

Brand GRUVLOK   Pack Quantity 1
Mfg Part Number 390003002

Product Description

Coupling, Standard, Nominal Size 2 In., Pipe Outside Diameter 2-3/8 In., Max. Working Pressure (PSI) 750, Max. Load (Lb.) 3323, Pipe End Separation 0 to 1/8 In., Overall Inside Dia. 3-1/2 In., Overall Width 5-5/8 In., Overall Diameter 1-7/8 In., Bolt Size (In.) 3/8 x 2-1/2, Min. Torque 30, Max. Torque 45, Temp. Range -40 Degrees to 230 Degrees F, Material of Construction Ductile Iron, Color Orange, Gasket EPDM, Compliance Certified for Potable Water Use, Standards ANSI B31.1, ANSI B31.9, NFPA 13


ItemCoupling
TypeStandard
Nominal Size2"
Pipe Outside Diameter2-3/8"
Max. Working Pressure (PSI)750
Max. Load (Lb.)3323
Pipe End Separation0 to 1/8"
Overall Inside Dia.3-1/2"
Overall Width5-5/8"
Overall Diameter1-7/8"
Bolt Size (In.)3/8 x 2-1/2
Min. Torque30
Max. Torque45
Temp. Range-40 Degrees to 230 Degrees F
Material of ConstructionDuctile Iron
ColorOrange
GasketEPDM
ComplianceCertified for Potable Water Use
StandardsANSI B31.1, ANSI B31.9, NFPA 13
Item Barcode
9126610
  Name Item Description
Grainger Dropship Grainger Dropship 2XET1
UNSPSC CODES UNSPSC CODES 40141720
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 Coupling,2 In,2 3/8 In
