DAYTON

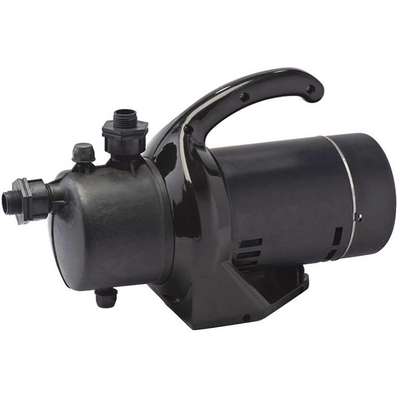

1/2 HP Sprinkler/Utility Pump, 115 Voltage, 1" NPT Inlet, 1" NPT Outlet

Hover over image to magnify
Utility Pump,1/2 Hp,115V,6.5A,
Utility Pump,1/2 Hp,115V,6.5A,

#912553-6 | Pkg Qty: 1

$321.13 pkg | $321.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
UL Listed
Item
Sprinkler/Utility Pump
Amps
6.5 A
Length
14-1/2 in.
Bearing Type
Ball
Maximum Case Pressure
58 psi
Brand
DAYTON
Maximum Diameter Solids
Clear Water Only
Cord
10 ft.
Maximum Fluid Viscosity
100 SSU
Duty
Continuous
Maximum Head
134 ft.
GPH of Water @ 10 PSI
594
Maximum Liquid Temperature
90° F
GPH of Water @ 15 PSI
588
Maximum Pressure
58 psi
GPH of Water @ 20 PSI
576
Maximum Specific Gravity
1
GPH of Water @ 25 PSI
456
Mfr. Part Number
3YU60
GPH of Water @ 30 PSI
366
Mfr. Warranty Length
1 yr.
GPH of Water @ 35 PSI
294
Motor Enclosure
ODP
GPH of Water @ 40 PSI
252
Motor Type
PSC
GPH of Water @ 5 PSI
618
Outlet
1 in. NPT
GPM of Water @ 10 Ft. of Head
9.9
Pack Quantity
1
GPM of Water @ 15 Ft. of Head
9.8
Phase
1
GPM of Water @ 20 Ft. of Head
9.6
RPM
3450
GPM of Water @ 25 Ft. of Head
7.6
Screw Material
Stainless Steel
GPM of Water @ 30 Ft. of Head
6.1
Seal Application
Nonflammable and Nonabrasive Liquids Compatible with Seal Component Materials
GPM of Water @ 35 Ft. of Head
4.9
Seal Material
Carbon, Ceramic, Buna N
GPM of Water @ 40 Ft. of Head
4.2
Seal Type
Mechanical
GPM of Water @ 5 Ft. of Head
10.3
Shaft Material
Stainless Steel
Height
10 in.
Shipping Weight
17.45 lb.
Horsepower
1/2
Suction Lift
25 ft.
Housing Material
Plastic
Type
Portable
Hz
60
Voltage
115
Impeller Material
Plastic with Brass Insert, SS Wear Ring
Volute Material
Plastic
Impeller Type
Closed Impeller
Wetted Materials
Thermoplastic, Stainless Steel, Brass, Carbon, Ceramic, Buna N
Inlet
1 in. NPT
Width
7-7/8 in.
General
Application
To Transfer Water, Run Multiple Lawn Sprinklers or Boost City Water Pressure Up to 40 PSI for Washing Cars, Boats and Farm Equipment
Impeller Design
Closed
Best Efficiency Flow
10.6 gpm
Includes
1 in FNPT x 3/4 in Garden hose adapters
Best Efficiency Head
10 ft
Intake Type
NPT
Compatible Discharge Pipe Size
1 in
Intake and Discharge Size
1 in , 1 in
Compatible Intake Pipe Size
1 in
Manufacturer Warranty Length
1 yr
Compatible with Media Type
Water
Maximum Feet of Head
35 ft
Discharge Type
NPT
Maximum Media Temperature
90 Degrees F
Electrical Connection Type
Plug-In
Minimum Media Temperature
32 Degrees F
Feet of Head (Minimum)
5 ft
Nameplate Voltage
115V AC
Flow Rate @ 10 ft of Head (Maximum)
9.9 gpm
Pump Housing Material
Plastic
Flow Rate @ 15 ft of Head (Maximum)
9.8 gpm
Pumping Application
Lakes, Pumping Water from Ponds, Sprinkler Systems, Streams
Flow Rate @ 20 ft of Head (Maximum)
9.6 gpm
Shut Off Pressure (Maximum)
58 psi
Flow Rate @ 30 ft of Head (Maximum)
6.8 gpm
Specific Gravity (Maximum)
1
Flow Rate @ 40 ft of Head (Maximum)
4.2 gpm
Suction Lift (Maximum)
25 ft
Flow Rate @ 5 ft of Head (Maximum)
10.3 gpm
Wetted Material
Brass, Buna-N, Carbon, Ceramic, Stainless Steel, Thermoplastic
For Use With
Nonflammable Liquids Compatible with Pump Materials

Product Description

Pump has a mechanical carbon ceramic, Buna N seal. Use to transfer water, run multiple lawn sprinklers (using water from lakes, streams, and ponds), or boost city water pressure.
