MADISON

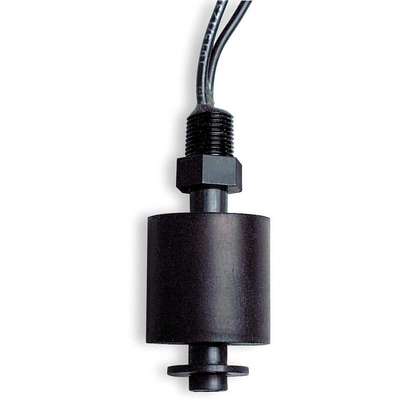

Madison Vertical Open Tank Liquid Level Switch, Selectable, Buna N, 1/8" NPT

Hover over image to magnify
Lqd Lvl Swch,1/8 In Npt,
PI_Asset_1028616
Lqd Lvl Swch,1/8 In Npt,
PI_Asset_1028616

#912527 | Pkg Qty: 1

$17.02 pkg | $17.02 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
PBT
Maximum Voltage
240 V
Brand
MADISON
Mfr. Part Number
M7000
Conduit Size
1/8 in.
Mounting
Vertical Open Tank
Contact Form
SPST
Mounts
Vertical
Electrical Connections
22 ga. PTFE Coated 24 in. Leads
Operating Temperature Range
221 deg. F
Fitting
1/8 in. NPT
Operation
NO/NC
Float Diameter
1.00 in.
Overall Length
2.25 in.
Float Length
1.00 in.
Shipping Weight
.05 lb.
Float Material
Buna N
Stem Length
1.63 in.
Float Specific Gravity
0.45
Stem Material
PBT
Height
2-1/4 in.
Switch Function
Selectable
Item
Liquid Level Switch
Tank Connection Size
1/8 in. NPT
Maximum Current
0.28A
Type
Liquid Level
Maximum Pressure
150 psi
VA Rating
30
Maximum Temperature (Deg. C)
105
Width
1 in.
General
Operating Temp. Range
221°F Max
Standards
UL, CSA, CE

Product Description

This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.

Item Barcode
9125270
Lqd Lvl Swch,1/8 In Npt,
 NameItemDescription
Grainger DropshipGrainger Dropship4YM35Lqd Lvl Swch, 1/8 In NPT,
UNSPSC CODESUNSPSC CODES39122219
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Lqd Lvl Swch, 1/8 In NPT,
