SCHNEIDER ELECTRIC

Schneider Electric Overload Relay, Trip Class: 10, Current Range: 37.0 to 50.0A, Number of Poles: 3

Hover over image to magnify

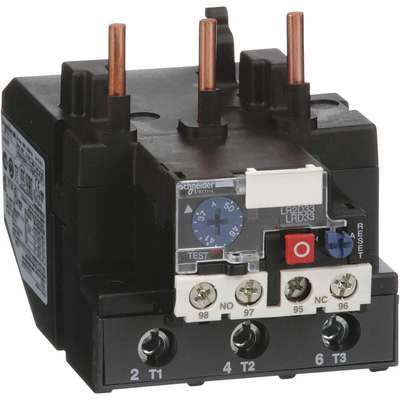

Iec Overload Relay
PI_Asset_1368321
Iec Overload Relay
PI_Asset_1368321

#912506-8 | Pkg Qty: 1

$160.82 pkg | $160.82 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Current Range
37.0 to 50.0A
Sensing Method
Thermal
Depth
4.76 in.
Shipping Weight
1.11 lb.
Height
4.84 in.
Starter Type
IEC
Item
Overload Relay
Voltage
690 VAC
Mfr. Part Number
LRD3357
Width
2.95 in.
Number of Poles
3
General
Body Depth - Relay
4.76 in
Overload Relay Current Range
37 to 50A
Body Height - Relay
4.84 in
Reset Type - Relay
Manual
Body Width - Relay
2.95 in
Standards
UL, CSA, ATEX D 94/9/CE, GOST
Code
G to J
Trip Class
10
Features
Differential
Trip Class - Overload
10
For Use With
LC1D50 thru LC1D80 Contactor
Use With - Contactors and Starters
Mfr. Series LC1D50 to LC1D80 Contactors
Overall Height - Relay
4.84 in

Product Description

TeSys™ IEC Contactors and Overload Relays For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail- or panel-mount. CSA and CE Certified. Overload Relays For 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.
