ARO

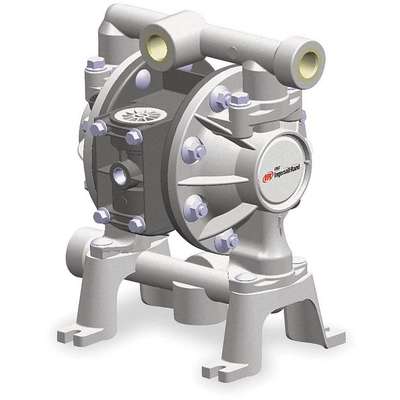

Double Diaphragm Pump: 1/2 in Inlet/Outlet Size, NPT Connection, 1/4 in FNPT Air Inlet Size

Hover over image to magnify
Pump,Diaphragm,1/2 In
Pump,Diaphragm,1/2 In

#912415-7 | Pkg Qty: 1

$1,150.32 pkg | $1,150.32 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
CE, RoHS, REACH
Maximum Diameter Solids
3/32 in.
Air Inlet Size
1/4 in. FNPT
Maximum Flow
14 gpm
Ball Material
PTFE
Maximum Flow (GPM)
14
Body Material
Polypropylene
Maximum Operating PSI
100
Brand
ARO
Maximum Operating Pressure
100 psi
Check Seat Material
Polypropylene
Maximum Temperature (Deg. F)
150°F
Connection Style
NPT
Mfr. Part Number
PD05P-ARS-PTT-B
Diaphragm Design
PTFE
Mfr. Warranty Length
5 yr.
Diaphragm Material
PTFE
Operation Type
Air Operated
Flow
11 gpm
Pack Quantity
1
Height
11-3/4 in.
Pump Operation Type
Air Operated
Housing Material
Polypropylene
Self-Priming Dry
10 ft.
Inlet/Outlet
1/2 in.
Self-Priming Wet
15 ft.
Inlet/Outlet Size
1/2 in.
Shipping Weight
8.2 lb.
Item
Double Diaphragm Pump
Valve Type
Ball
Length
13-29/32 in.
Width
7-3/4 in.
Manifold Connection
Multiport
General
Diaphragm Material - Pumps
PTFE
Max. Dia. Solids
3/32 in
Housing Material - Pumps
Polypropylene

Product Description

Offering high volume delivery even at low air pressure this ARO® double diaphragm pump features maximized flow rates with minimal pulsation and air consumption. This air-operated, double-diaphragm model utilizes a pressure differential in the air chambers to alternately create suction and a positive fluid pressure in the fluid chambers, and ball checks to help insure a positive fluid flow. Pump can provide reliable operation with innovative, lube-free differential valve both on the major air valve and Simulshift™ pilot valve for worry-free operation.
