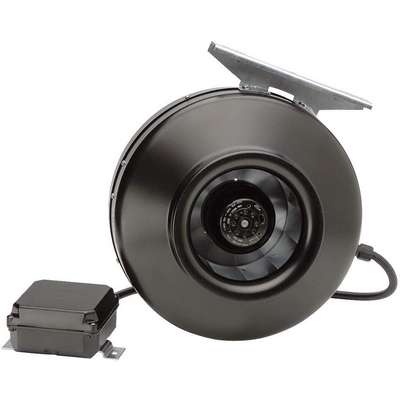

Soler & Palau Galvanized Metal Inline Centrifugal Duct Fan, Fits Duct Dia. 8", Voltage 120 V

Hover over image to magnify

#912350-8Pkg Qty: 1

$417.66 pkg

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Agency Compliance

UL, HVI, AMCA, Energy Star

Brand

SOLER & PALAU

Housing Diameter

13-1/8 in.

Housing Material

Galvanized Metal

Item

Inline Centrifugal Duct Fan

Length

13-1/8 in.

Mfr. Part Number

PV-200X

Motor Enclosure

Totally Enclosed

Mounting Position

Horizontal or Vertical

Package Quantity

Shipping Weight

15.35 lb.

Agency Compliance

UL, HVI, AMCA, Energy Star

Mfr. Part Number

PV-200X

Brand

SOLER & PALAU

Motor Enclosure

Totally Enclosed

Housing Diameter

13-1/8 in.

Mounting Position

Horizontal or Vertical

Housing Material

Galvanized Metal

Package Quantity

Item

Inline Centrifugal Duct Fan

Shipping Weight

15.35 lb.

Length

13-1/8 in.

General

Airflow @ 0.000 in SP

544 cfm

Airflow @ 0.000 in SP - Range

500 to 749 cfm

Airflow @ 0.000 in. SP - Range

0 to 999 cfm

Bearing Type

Ball

For Fan Type

Dryer Booster

Includes

Mounting Bracket

Maximum Inlet Air Temperature

140 Degrees F

Motor IP Rating

IP44

Motor Output Power

180 W

Motor Speed

2,930 RPM

Nameplate Voltage

120V AC

Nominal Voltage

120V AC

Overall Dimensions H x W

8 1/2 in x 13 1/8 in

Speed Control Included

Yes

Speed Controllable

Yes

Airflow @ 0.000 in SP

544 cfm

Motor Output Power

180 W

Airflow @ 0.000 in SP - Range

500 to 749 cfm

Motor Speed

2,930 RPM

Airflow @ 0.000 in. SP - Range

0 to 999 cfm

Nameplate Voltage

120V AC

Bearing Type

Ball

Nominal Voltage

120V AC

For Fan Type

Dryer Booster

Overall Dimensions H x W

8 1/2 in x 13 1/8 in

Includes

Mounting Bracket

Speed Control Included

Yes

Maximum Inlet Air Temperature

140 Degrees F

Speed Controllable

Yes

Motor IP Rating

IP44

Product Description

Mixed Flow In-Line Duct Fans

120V, 60 Hz Mount: horizontally or vertically Motor: totally enclosed Bearings: ball
Designed for max. air flow and quiet operation to ensure improved indoor air quality. Motor-impeller assembly can be removed without interfering with attached ducting. C- HVI Certified. ENERGY STAR qualified.
