SOUTHWIRE COMPANY

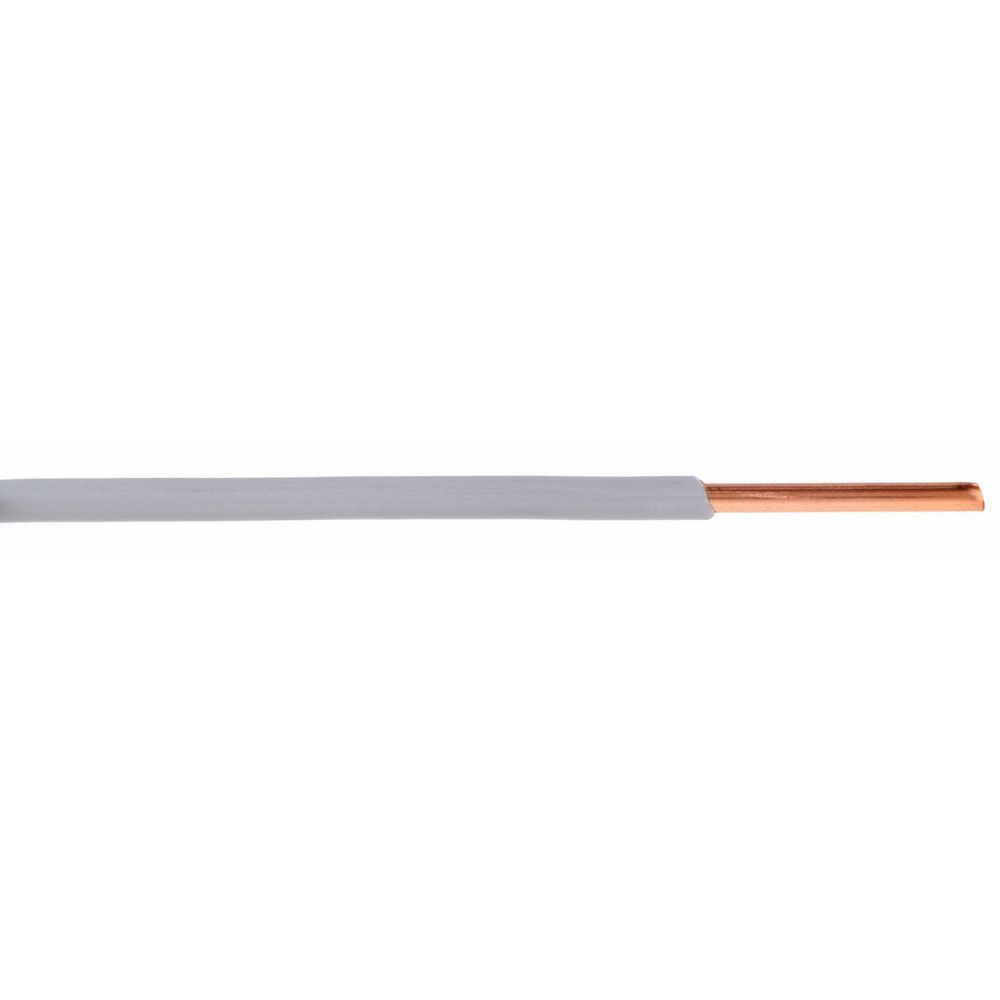

500 ft. Solid Building Wire with THHN Wire Type and 14 AWG Wire Size, Gray

Hover over image to magnify
Wire,Solid,14AWG,Solid,Thhn
PI_Asset_1354562
Wire,Solid,14AWG,Solid,Thhn
PI_Asset_1354562

#912299-5 | Pkg Qty: 1

$116.19 pkg | $116.19 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SOUTHWIRE COMPANY
Shipping Weight
8.5 lb.
Color Family
Gray
Spool Length
500 ft.
Insulation
PVC
Stranded / Solid
Solid
Insulation Material
PVC
Stranding
1
Item
Building Wire
Temperature Rating
194deg. F
Jacket
Nylon
Type
Solid
Jacket Color
Gray
Voltage
600VAC
Jacket Material
Nylon
Wire Color
Gray
Length
500 ft.
Wire Size
14 AWG
Maximum Amps
15
Wire and Cable Item
Building Wire
Mfr. Part Number
21466801
Wire/Cable Insulation Material
PVC
Nominal Outside Diameter
0.1 in.
Wire/Cable Jacket Material
Nylon
Number of Conductors
1
Wire/Cable Size
14 AWG
Package Quantity
1
Wire/Cable Type
THHN
Packaging
Spool
General
Conductor Design
Solid
Temp. Rating
194°F
Insulation Material - Wire and Cable
PVC
Trade Designation
THHN
Jacket Material - Wire and Cable
Nylon
Wire Size - Wire and Cable
14 AWG
Standards
UL,E34382
Wire Type - Wire and Cable
THHN

Product Description

Thermoplastic high-heat-resistant nylon (THHN) building wire is a coated wire typically run through conduit or cable trays. This general purpose wire is used to supply an electrical current in a range of indoor wiring projects, including control circuits and appliances. It has a durable nylon jacket that resists abrasion, protects against shock, and shields the thermoplastic insulation and metal conductor from damage.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.
