HUBBELL WIRING DEVICE-KELLEMS

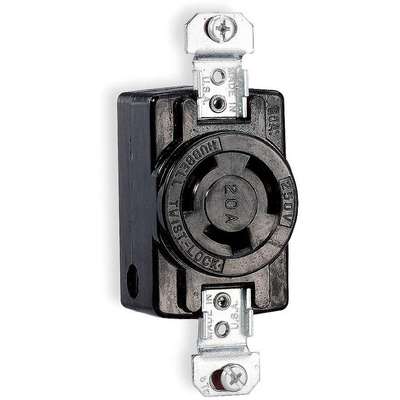

Hubbell Wiring Device-Kellems Black Locking Receptacle, 20 Amps, 250VAC Voltage, NEMA Configuration: Non-NEMA

Hover over image to magnify
Receptacle,Single,2P,3W,20A,
PI_Asset_948317
Receptacle,Single,2P,3W,20A,
PI_Asset_948317

#912240-3 | Pkg Qty: 1

$61.64 pkg | $61.64 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AFCI
No
Mfr. Part Number
HBL7310BG
Amperage
20 A
Minimum Operating Temperature
-40 °C
Amps
20 A
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mount Type
Flush
Color Family
Black
Mounting Type
Flush Mount
Connection Orientation
Straight
NEMA Enclosure Rating
1
Contact Material
Brass
NEMA Rating
12, 4X
Cover Type
No Cover
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Number of Gangs
1
Flange Type
Non-Flanged
Number of Poles
2
Flange Width
Not Applicable
Number of Wires
3
For Environment
Dry
Package Quantity
1
For Location
Indoor
Phase
Single
Grade
Industrial
Polarized
Yes
Grounding
Grounded
Shipping Weight
.2 lb.
Housing Color
Black
Shrouded
No
Housing Material
Nylon
Special Features
Corrosion Resistant
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Includes
Mounting Hardware
Subcategory
Single Receptacles
Includes Mounting Hardware
Yes
Type
2 Pole 3 Wire
Item
Locking Receptacle
UL 94 Flammability Rating
V-2
Material
Thermoset
Voltage
250V AC
Material of Construction
Nylon/Polyester
Voltage Rating
250V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
8 AWG
Wiring Style
Standard
General
Special Features
Corrosion Resistant

Product Description

Locking Devices Note: For weatherproof boots for plugs and connectors, see page 618. For NEMA configurations, see page 611.
