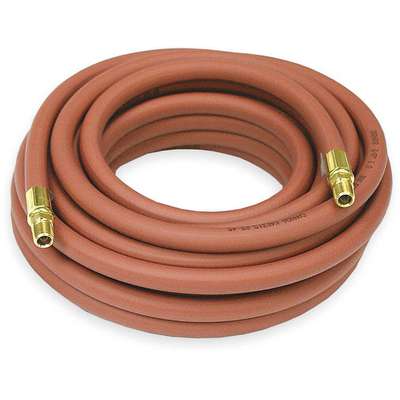

Air Hose: 3/8 in Hose Inside Dia., Red, Brass 1/4 in MNPTF x Brass 3/8 in MNPTF, PVC

Hover over image to magnify
Air Hose,3/8 IDx50Ft,1/4x3/8
Air Hose,3/8 IDx50Ft,1/4x3/8

#912218-6 | Pkg Qty: 1

$80.70 pkg | $80.70 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
REELCRAFT
Item
Air Hose
Color Family
Red
Maximum Pressure
300 psi
Coupled Assembly/Bulk
Coupled Assembly
Mfr. Part Number
S601012-50
Cover Material
PVC
Outside Diameter
5/8 in.
Fitting Material
Brass
Package Quantity
1
Fitting Size
1/4 in. x 3/8 in.
Shipping Weight
6.57 lb.
Fitting Type
MNPTF x MNPTF
Subgroup | Pneumatic Hose
Multipurpose Air Hose
Hose Length
50 ft.
Temperature Range
0 deg. F to 150 deg. F
Hose Media
Air, Mild Chemicals, Water
Tube Material
PVC
Inside Diameter
3/8 in.
General
Coupling Material
Brass
Hose Fitting B Type
MNPT
For Use With
Mfr. No. 6NU34, 5650 OLP1
Hose Fittings
Brass 1/4 in MNPTF x Brass 3/8 in MNPTF
Hose Configuration
Coupled Assembly
Hose Tube Material
PVC
Hose Cover Material
PVC
Max. Working Pressure @ 70 F
300 psi
Hose Fitting A Material
Brass
Safety Factor
4:1
Hose Fitting A Type
MNPT
Standards
ANSI B1.20.1
Hose Fitting B Material
Brass

Product Description

PVC (polyvinyl chloride) air hose assemblies with PVC covers are used for carrying air, water, and various spray solutions to tools and equipment in industrial, construction, and agricultural hand-spraying applications. The hoses have a PVC tube and a PVC cover that resist many chemicals and provide moderate resistance to oils. These hoses are lightweight and flexible, which minimizes the effort it takes to lift or move the hose. Their PVC cover will not mark surfaces it comes in contact with.

Air hose assemblies come with fittings installed on both ends of the hose for connecting the hose to pneumatic tools and equipment. Also known as pneumatic hoses or air compressor hoses, air hoses are used to carry compressed air to tools and equipment. These hoses are uncoiled and can be stored on a reel to keep them out of the way when not in use.
