SPEEDAIRE

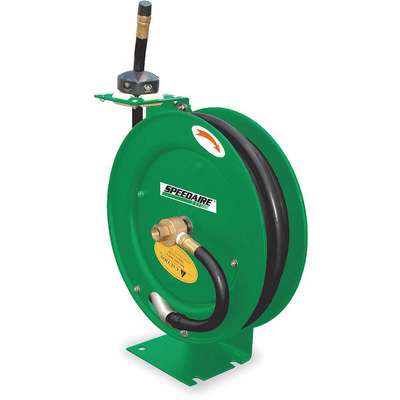

Spring Return Hose Reel: 50 ft (3/8 in I.D.), 3/8 in MNPT x 1/4 in MNPT, 300 psi Max Op Pressure

Hover over image to magnify
Hose Reel,Spring,50 Ft,3/8 Id,
PI_Asset_1769414
Hose Reel,Spring,50 Ft,3/8 Id,
PI_Asset_1769414

#912159-4 | Pkg Qty: 1

$187.22 pkg | $187.22 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearings
Permanently Lubricated
Item
Spring Return Hose Reel
Brand
SPEEDAIRE
Latch
Locking
Drive Type
Spring Return
Maximum Pressure
300 psi
Enclosed
No
Maximum Temperature
210 deg. F
Enclosed Reel
No
Mfr. Part Number
2CUA7
Finish
Powder Coated
Mounting Location Type
Bench, Ceiling, Floor, Truck, Wall
Hose Capacity
50 ft. (3/8 in I.D.)
Number of Guide Arms
Single Arm
Hose Ends
1/4 in. (M)NPT x 3/8 in. (M)NPT
Overall Height
17 in.
Hose Included
Yes
Overall Length
17-3/4 in.
Hose Inside Diameter
3/8 in.
Overall Width
7 in.
Hose Length
50 ft.
Package Quantity
1
Hose Material
Rubber
Reel Inlet
3/8 in. (M)NPT
Hose Reel Group
Spring Return Hose Reels
Reel Material
Steel
Hose Reel Media
Air, Water
Seal Type
Nitrile
Hose Reel Rating
Heavy Duty
Shipping Weight
37.1 lb.
Housing Material
Steel
Speed Limited Retraction
No
Includes Hose
Yes
Type
General Industrial, Low Pressure, Auto Retractable
General
Base Motion Type
Stationary
Includes
Hose
Bearing Construction
Permanently Lubricated
Includes Hose Stop
Yes
Corrosion-Resistant
Yes
Includes Leader Hose
No
Drive Type - Hose Reels
Spring Return
Media - Hose Reels
Air, Water
Fasteners Included
No
Mount Base Height
6 in
Finish - Hose Reels
Powder Coated
Mount Base Width
5 45/64 in
Fitting Gender
Male x Male
Mount Hole Diameter
1/2 in
For Dual Hose
No
Mounting Hole Center to Center Height
5 in
Hose Cover Material
Rubber
Mounting Hole Center to Center Width
4 in
Hose End Configuration
3/8 in MNPT x 1/4 in MNPT
Number of Mount Holes
4
Hose Fitting A Material
Brass
Reel Finish
Powder Coated
Hose Fitting A Type
NPT
Spiral Hose Guard
No
Hose Fitting B Type
NPT
Swivel Inlet Gender
Female
Hose Inside Dia.
3/8 in
Swivel Inlet Thread Size
1/2 in
Hose Outlet
1/4 in (M)NPT
Swivel Inlet Type
NPT
Hose Outside Dia.
11/16 in
Swivel Material
Brass
Hose Reel Primary Application
Air, Water
Swivel Outlet Gender
Female
Hose Reel Product Group
Spring Return Hose Reel
Swivel Outlet Thread Size
3/8 in
Hose Reel Type
Wall Mount Hose Reel
Swivel Outlet Type
NPT
Hose Tube Material
Rubber

Product Description

Standard air or water spring-return hose reels are single-pedestal, low-pressure (up to 500 psi) hose reels that include standard low-pressure hose for air or water service only. These reels mount to the floor, wall, or ceiling, and include an adjustable guide arm. Standard air/water hose reels are used with air or water hoses for pneumatic tools, in service centers, and at construction sites.
