LOCTITE

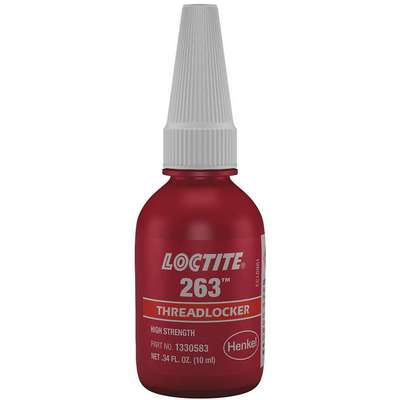

Primerless Threadlocker: Series 263, Primerless Threadlocker, Red, Liquid, 10 mL, Bottle
Hover over image to magnify
#912154-7 | Pkg Qty: 1
$22.61 pkg | $22.61 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Appearance
Red
Package Quantity
1
Begins to Harden
10 min.
Performance Temperature Range
-65 deg. F to 360 deg. F
Brand
LOCTITE
Physical Form
Liquid
Chemical Type
Anaerobic
Removable With
Heat and Hand Tools
Color Family
Red
Series
263
Fills
Gaps Between Threads
Shipping Weight
.05 lb.
Fixture Time
10 min.
Size
10 mL
Flash Point
212 deg. F
Specific Gravity
1.1
For Fastener Diameter
Up to 1 in.
Temperature Range
-65 to 360 deg. F
Full Cure
24 hr.
Threadlocker Classification
Primerless Threadlocker
Full Cure Time
1 day
Threadlocker Disassembly
Permanent
Gap Fill
0.007 in.
Threadlocker Strength
High Strength
Item
Primerless High-Strength Threadlocker
Type
High Strength
Mfr. Part Number
1330583
Viscosity
400 to 600 cP
Net Weight
10 mL
General
Application
For Locking and Sealing Fasteners up to 3/4 in.
Mixing Required
No
Breakaway Torque
290 in-lb
Pack Size
1 EA
Breakaway Torque Range
201 in-lb to 300 in-lb
Prevailing Torque
290 in-lb
Clean Up Method
Solvent, Wire Brush
Product Form
Liquid
Compatible Materials
Brass, Bronze, Copper, Iron, Manganese, Nickel, Plated Metal, Steel, Zinc
Recommended Surface Preparation
Dry Surface
Container Size Range
0.39 oz and Under
Removal Method
Hand Tool and Heat
Container Size and Type
0.34 fl oz Bottle
Standards
NSF/ANSI 61, CFIA, OSHA Hazard Communication, RoHS Certified
Container and Size
Bottle 0.39 oz and Under
Storage Requirements
8 Degrees to 21 Degrees C
Cure Type
Anaerobic
Threadlocker Properties
Oil Tolerant, Primerless
For Material Type
Aluminum, Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Plated Metals, Stainless Steel, Steel, Zinc
Torque and Strength
290 in-lb High
For Maximum Thread Diameter
1 in
VOC Content Weight Percentage
0.0036
Green Certification/Other Recognition
NSF® Certified (Sustainability or Environmental Standard)
Working Time
10 min
Minimum Viscosity
400 cps
Working Time Range
6 min to 10 min
Product Description
Loctite® threadlocker fills gaps between threads and securely mates surfaces to form solid, unitized assemblies. Also prevents fasteners from loosening due to vibration and protect against rust and corrosion. Fasteners can be removed with hand tools after heat is applied.
