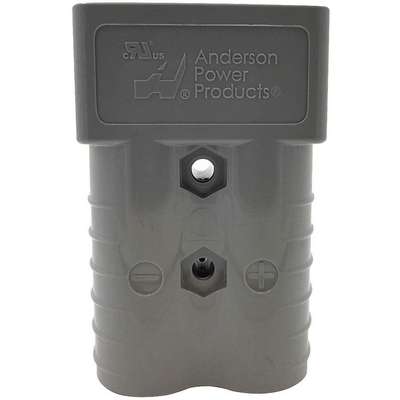

Power Connector, Gray, 2/0 Wire Size (AWG), 0.484" Max. Wire Dia.

Power Connector, Gray, 2/0 Wire Size (AWG), 0.484" Max. Wire Dia.

#912090-6 | Pkg Qty: 1

$23.33 pkg | $23.33 ea
Item Number 912090-6
Scanner Description Connector,Wire/Cable
Inventory Status Drop Ship Item
Weight 0.55 lb
Brand ANDERSON POWER PRODUCTS

Technical Specifications

Amps
350
Function
Rotate One Connector 180 Degrees to Connect to the Other
Brand
ANDERSON POWER PRODUCTS
Item
Power Connector
Cable Well Depth
1.1 in.
Material of Construction
Polycarbonate
Color Family
Gray
Mfr. Part Number
6320G1
Contacts
Silver-plated Electrolytic Copper
Pack Quantity
1
Cross-Ref. to Brad Harrison
49210
Type
Two Pole
Cross-Reference to SMH
SY6320G1
Wire Gauge
2/0
Features
600V Continuous AC or DC Ooperation
max._wire_dia_spec_s
0.484 in.

Product Description

This power connector features silver-plated, electrolytic copper contacts for low resistance and high conductivity. It is male/female, with 1-piece, impact-resistant, polycarbonate housing. Its Solid barrel contacts are flared for easy insertion of stripped wire or cables, and supported by tempered stainless steel leaf springs to maintain constant pressure and vibration resistance. The annealed barrel also helps to ensure even crimping.

Item Barcode
9120906
  Name Item Description
Grainger Dropship Grainger Dropship 3BY26 Connector, Wire/Cable
UNSPSC CODES UNSPSC CODES 39121431
VMRS (ATA) CODES VMRS (ATA) CODES 053-004-000 Connector, Wire/Cable
