ENERPAC

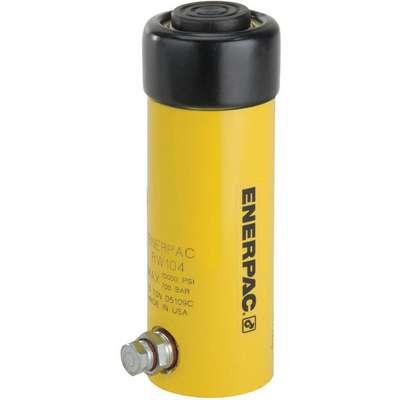

10 tons Single Acting Universal Cylinder Steel Universal Cylinder, 4-1/8" Stroke Length

Hover over image to magnify
Hyd Cylinder,Steel,10 Ton,4.13
Hyd Cylinder,Steel,10 Ton,4.13

#912028 | Pkg Qty: 1

$660.73 pkg | $660.73 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
ENERPAC
Package Quantity
1
Item
Hydraulic Ram
Shipping Weight
6.44 lb.
Mfr. Part Number
RW104
General
Base Bolt Circle Dia.
1.56 in
Nominal Stroke Length
4 in
Center Hole Dia.
1 1/2 in
Oil Capacity Push
9.21 cu in
Collar Thread Size
2-1/4"-14
Outside Dia.
2.25 in
Effective Push Area
2.23 sq in
Plunger Dia.
1.5 in
Extended Height
10.88 in
Plunger Thread Size
1"-8
Includes
Saddle
Retracted Height
6.75 in
Max. Pressure
10,000 psi
Single Acting/Double Acting
Single Acting
Max. Push Capacity
10 ton

Product Description

Solid-plunger block-body hydraulic cylinders are single-acting, which means they provide movement in one direction and have an internal spring that returns the cylinder to its starting position.

Block-body hydraulic cylinders are linear, single-acting cylinders that provide movement in one direction and have a spring that returns the rod to the starting position. They can be used for push and pull operation. They can be mounted directly to the top or bottom of a fixture and have a compact design that allows them to be installed in confined spaces. Block-body hydraulic cylinders can be used installed in medium-cycle, low- and high-pressure applications such as machining, testing stations, and hydraulic presses.

Item Barcode
9120280
Hyd Cylinder,Steel,10 Ton,4.13
 NameItemDescription
Grainger DropshipGrainger Dropship5UWZ9Hyd Cylinder, Steel,10 Ton,
UNSPSC CODESUNSPSC CODES27121602
VMRS (ATA) CODESVMRS (ATA) CODES053-008-003Hyd Cylinder, Steel,10 Ton,
