#911908-6 | Pkg Qty: 1
$13.10 pkg
| $13.10 ea
Technical Specifications
Key Specifications
Brand
DAYTON
Number of Pieces
1
Capacitor Shape
Round
Number of Terminals
2
Case Height
2-3/4 in.
Overall Height
2-3/4 in.
Case Material
Plastic
Overall Width
1-7/16 in.
Connection Type
Quick Connect
Pack Quantity
1
Construction
Sealed Molded Phenolic Resin Case
Shape
Round
Diameter
1-7/16 in.
Terminals
2-blade Quick-connect insulated
Hz
60/50
Voltage
110 to 125 VAC
Item
Motor Start Capacitor
General
Capacitor Voltage
110 to 125V AC
Standards
RoHS Compliant, UL and C-UL Recognized, UL Recognized for US and Canada (E224674)
For Use With
Single-Phase AC Motor Starting Circuits
Starts per Hour
20
Max. Power Factor
0.1
Temp. Range
-40° to 65°C
Microfarad Rating
216-259
Terminal Gender
Male
Min. Temperature
-40 °C
Terminal Tab Width
1/4 in
Motor Capacitor Type
Motor Start Capacitor
Product Description

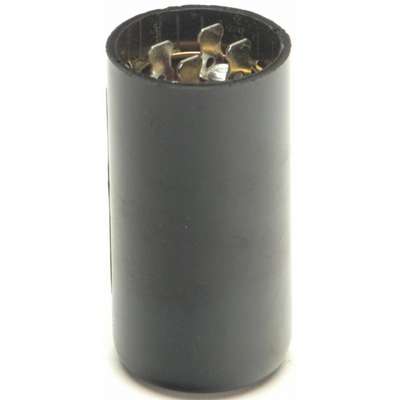

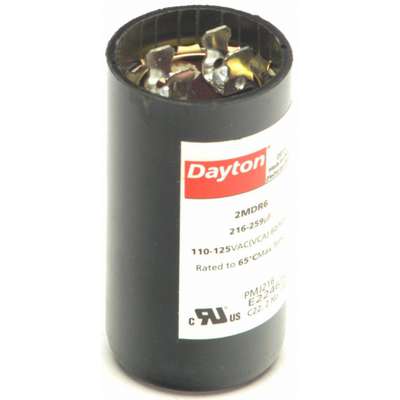

Start Capacitors
- Temp. range: -40° to 65°C (-40° to 149°F) Electrolytic, nonpolarized capacitors are designed for normal intermittent service on single-phase AC motor starting circuits. Round, molded cases protect the capacitor from oil, dirt, moisture, and grease. RoHS compliant. UL and C-UL Recognized.
Item Barcode
Start Capacitor,216-259mfd,110-
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 2MDR6 | Start Capacitor, |
|
UNSPSC CODES | 39121521 | |
|
VMRS (ATA) CODES | 053-007-000 | Start Capacitor, |
