POWER FIRST

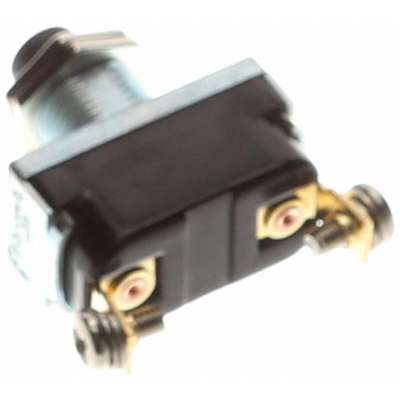

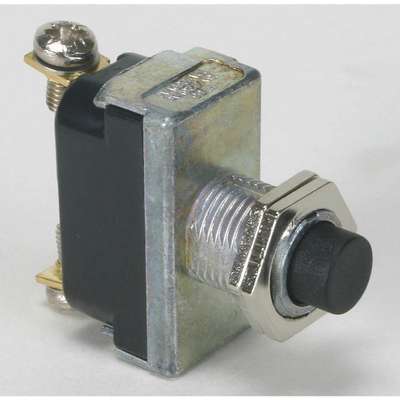

Power First SPST Miniature Push Button Switch, Off/Momentary On with Screw Terminals
Hover over image to magnify
#911893-9 | Pkg Qty: 1
$10.68 pkg | $10.68 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
16 A @ 125 VAC, 10 A @ 250 VAC
Mounting Hole
1/2 in. dia.
Action
Momentary
Mounting Type
Panel
Amperage
16 A
Number of Connections
2
Brand
POWER FIRST
Operating Temperature Range
167 deg. F
Contact Form
SPST
Package Quantity
1
Contact Rating
10 A @ 250 VAC
Shipping Weight
.05 lb.
Contact Rating @ 125 V (Amps)
16
Stem Diameter
2022-01-02
Contact Rating @ 250 V (Amps)
10
Stem Diameter/Thread Size
M12X1
Contact Type
SPST
Stem Length
1/2 in.
Item
Miniature Push Button Switch
Switch Function
Off/Momentary On
Mfr. Part Number
2VLP7
Terminals
Screw
Mounting Dimension
1/2 in. dia.
Type
Momentary
General
Operating Temp. Range
To 104°F
Stem Dia. and Thread Size
M12X1
Standards
UL
Product Description
This miniature pushbutton switch is designed for use with shallow back panel applications including alarms, warning devices, and test equipment.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Push Switch,Momentary,Spst,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2VLP7 | Push Switch, Momentary, |
 | UNSPSC CODES | 39122216 | |
 | VMRS (ATA) CODES | 034-004-110 | Push Switch, Momentary, |
