FILL-RITE

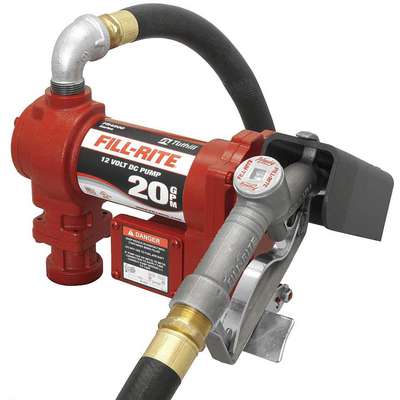

Fuel Transfer Pump: 12 VDC, 20 GPM, 12 ft Hose Lg, Cast Iron, Manual, 1/4 HP, Rotary Vane

Hover over image to magnify
Pump,Fuel Transfer
PI_Asset_964885
Pump,Fuel Transfer
PI_Asset_964885

#911727-2 | Pkg Qty: 1

$719.25 pkg | $719.25 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps AC
22
Nozzle Material
Aluminum
Bearing Type
Ball
Nozzle Type
Manual
Brand
FILL-RITE
Outlet Size
1 in FNPT
Bypass Valve
Internal
Outside Height
12 in.
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Overall Length
13 in.
Duty Cycle
30 min.
Overall Width
9 in.
GPM
20 gpm
Package Quantity
1
Horsepower
1/4
Power Cord Length
18 ft.
Hose Diameter
1 in.
Pressure Range
0 psi to 16 psi
Hose Length
12 ft.
Pump Design
Rotary Vane
Hose Size
1" x 12 ft.
RPM
2600
Housing Material
Cast Iron
Seal Material
Ceramic/Carbon
Inlet Size
1 in MNPT
Seal Type
Mechanical
Item
Fuel Transfer Pump
Self-Priming
Yes
Maximum Viscosity
50 SSU
Shipping Weight
34.06 lb.
Metered
No
Transfer Pump Application
Agriculture, Construction, Farming
Mfr. Part Number
FR4210H
Type
Fuel Transfer
Mfr. Warranty Length
2 yr
Voltage
12 VDC
Mounting Type
2" NPT with Supplied Bung Adaptor
General
Features
Explosion Proof Motor, Thermal Overload Protection
Includes
1 in X 12 ft Hose, Manual Nozzle, Adjustable Telescoping Suction Tube, Heavy Duty Power Cable
Hose Dia.
1 in
Standards
UL Listed Motor

Product Description

Pump resists corrosion, is weatherized, and sealed for long life. Model has a permanent magnet motor, Viton® O-rings, a heavy-duty switch, and is lockable to help deter theft. Pump can be mounted to a standard 2" NPT opening with included bung adapter.
