CHICAGO PNEUMATIC

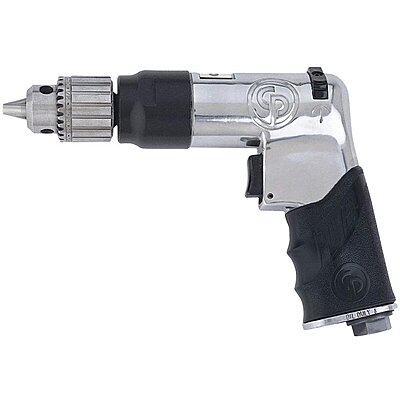

Chicago Pneumatic Air-Powered, Drill, Industrial Duty, 0 ft-lb to 1.9 ft-lb Torque Range
Hover over image to magnify
#911516-6 | Pkg Qty: 1
$350.19 pkg | $350.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
30 CFM
Item
Drill
Air Inlet
1/4 in.
Mfr. Part Number
CP789R-42
Air Inlet NPT
1/4 in.
Minimum Hose Size
3/8 in.
Air Tool Body Type
Pistol
Overall Height
7-7/8 in.
Air Tool Drill Chuck Type
Keyed
Overall Length
7 in.
Avg CFM @ 15 Sec Run Time
7-1/2
Overall Width
7-7/8 in.
Bearings
Ball
Package Quantity
1
Brand
CHICAGO PNEUMATIC
Power Source
Air-Powered
CFM @ Full Load
30
Required Pressure
90 psi
Chuck Size
3/8 in.
Reversing
Yes
Duty
Industrial
Shipping Weight
3 lb.
Free Speed
4200 RPM
Throttle Type
Trigger
Gear Train
Planetary
Tool Length
7 in.
Handle Material
Aluminum
Tool Weight
2-1/2 lb.
Handle Type
Pistol Grip
Torque Range
0 ft.-lb to 1.9 ft.-lb
Horsepower
0.4 HP
Type
Industrial Duty
Housing
Aluminum with Rubber Grip
Variable Speed
Yes
Housing Material
Aluminum
General
Air Pressure
90 psi
Drilling Capacity in Cast Iron
1/8 in
Application
Drilling, Reaming Holes
Drilling Capacity in Wood
3/8 in
Bearing Design
Ball
Includes
Chuck Key
Body Style - Air Tools
Pistol
Max. Torque
1.9 ft-lb
Chuck Material
Metal
Min. Torque
0 ft-lb
Drill Chuck Type
Keyed
Noise Level
96 dB
Drilling Capacity in Aluminum
1/4 in
Spindle Thread Size
3/8"-24
Product Description
These pistol-grip air-powered drills provide ergonomic handling for applying pressure and maintaining control during drilling and fastening. They are commonly used for automotive and assembly tasks.
Expertly Selected Product Pairings
Item Barcode
Air Drill,3/8"Chuck,4200RPM
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 11C953 | AIR DRILL, KEYED,3/8IN |
 | UNSPSC CODES | 27131505 | DRILL |
 | VMRS (ATA) CODES | 053-006-010 | DRILL |
