PASS & SEYMOUR

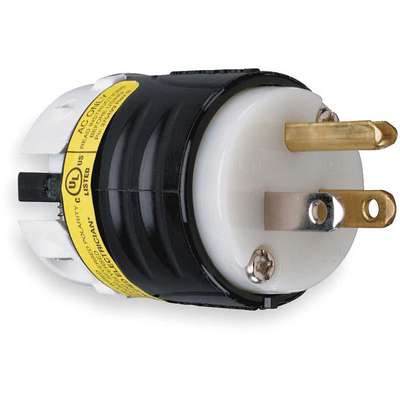

Pass & Seymour 15A Specification Grade Ground Continuity Monitoring Straight Blade Plug, Black/White; NEMA Configur
Hover over image to magnify
#911491-3 | Pkg Qty: 1
$29.32 pkg | $29.32 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
15 A
Material
Nylon
Antimicrobial
No
Maximum Wire Size
1/0 AWG
Blade Material
Brass
Mfr. Part Number
PS5266XGCM
Brand
PASS & SEYMOUR
Minimum Wire Size
14 AWG
Color Family
Black / White
NEMA Configuration - Plugs & Connectors
5-15
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.230 in. to 0.720 in.
Number of Poles
2
Corrosion Resistant
No
Number of Wires
3
Current Rating
15 A
Package Quantity
1
For Maximum Cable Diameter
0.72 in.
Phase
Single
For Minimum Cable Diameter
0.23 in.
Shipping Weight
.16 lb.
Grade
Specification
Standards
UL Listed
Grounding
Grounded
Subcategory
Plugs
Housing Material
Nylon
Type
Ground Continuity Monitoring
IP Rating
IP20
Voltage
125V AC
Insulation Material
Nylon
Wire Connection Type
Screw Terminals
Item
Ground Continuity Monitoring Straight Blade Plug
Wiring Style
Standard
General
Amps - Plugs and Receptacles
15 A
Phase - Plugs and Receptacles
1
Grade - Plugs and Receptacles
Specification
Voltage - Plugs and Receptacles
125V AC
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Product Description
Ground Continuity Monitoring Straight Blade Plug, Wiring Style Standard, Antimicrobial No, Grade - Plugs and Receptacles Specification, Amps - Plugs and Receptacles 15, 5-15P, Number of Poles 2, Number of Wires 3, 125V AC, Black/White, Corrosion Resistant No, Phase - Plugs and Receptacles 1, Cord Size 0.230 in to 0.720 in, IP Rating 20, Material Nylon, HP -
Item Barcode
Straight Blade Plug, 15A
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1PGJ8 | STRAIGHT BLA DE PLUG,15A |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 034-003-034 |
