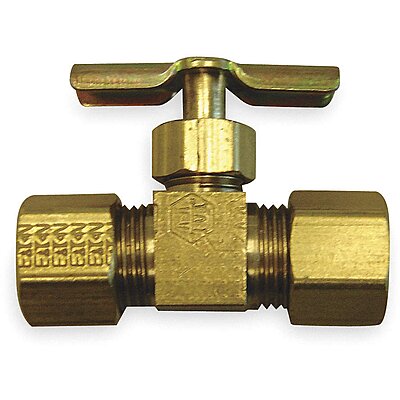

Needle Valve: Straight Fitting, Brass, 1/4 in Pipe Size, Double Compression

Hover over image to magnify
Valve Needle, 1/4X1/4 In
Valve Needle, 1/4X1/4 In

#911437-3 | Pkg Qty: 1

$14.89 pkg | $14.89 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Brass
Length
1-13/16 in.
Brand
APPROVED SUPPLIER
Maximum Pressure
150 psi
Connection Type
Double Compression
Mfr. Part Number
6MM66
Fitting Style
Straight
Outlet Port Size
1/4 in.
Handle Material
Steel
Package Quantity
1
Inlet Port Size
1/4 in.
Shipping Weight
.1 lb.
Item
Needle Valve
Temperature Range (Deg. F)
Up to 250 deg. F
General
Max. Height
1 5/16 in
Temp. Rating
0 Degrees to 250 Degrees F
Stem Type
Brass

Product Description

For use in hydraulic and pneumatic systems. Designed for automotive and industrial applications. Standard style, brass construction with steel handles. Valve comes complete with nuts and sleeves.

Item Barcode
9114373
Valve Needle, 1/4X1/4 In
 NameItemDescription
Grainger DropshipGrainger Dropship6MM66VALVE,NEEDLE 1/4X1/4
UNSPSC CODESUNSPSC CODES40141602
VMRS (ATA) CODESVMRS (ATA) CODES053-999-058
