MILLER ELECTRIC

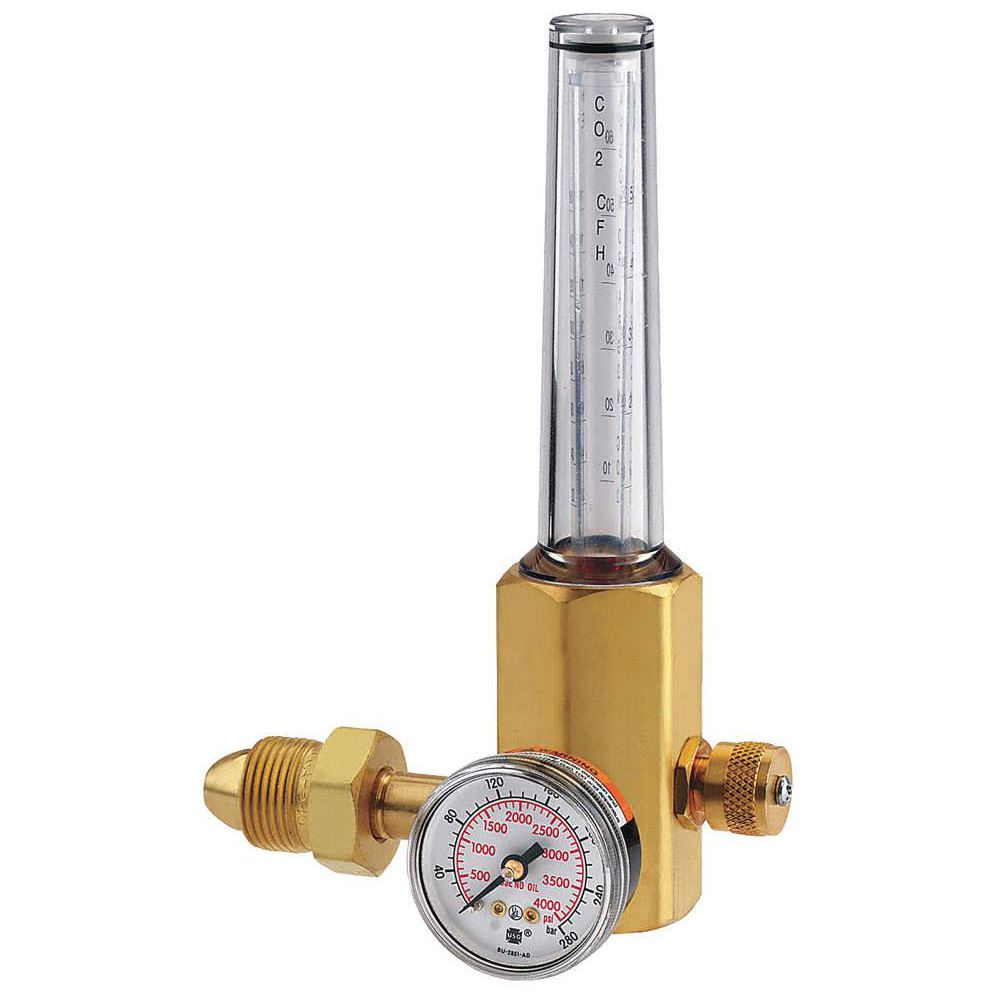

Miller Electric Argon, Carbon Dioxide, Helium, Flowmeter Regulator, CGA-580, Single Stage, Brass, 50 psi
Hover over image to magnify
#911425-6 | Pkg Qty: 1
$224.47 pkg | $224.47 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Diameter
2.000 in.
Maximum Inlet Pressure
3000 psig
Body Material
Brass
Mfr. Part Number
H2051B-580
Brand
MILLER ELECTRIC
Outlet Connection
5/8 in.-18 F RH
CGA Connection Inlet
580
Overall Length
3-1/4 in.
Cylinder Gas
Argon, CO2, Helium
Package Quantity
1
Delivery
0 to 50 scfh CO2, 0 to 160 scfh He, 0 to 60 scfh Ar/CO2 Mix
Regulator Supply Type
Cylinder
Delivery Pressure Range
50 psi
Series
H2051
Gas Service
Argon, Carbon Dioxide, Helium
Shipping Weight
2.26 lb.
Gauge Size
1-1/2 in.
Stages
Single Stage
Gauges Delivery Pressure
50 psi
Supply Pressure Gauge
0 to 4000 psi
Inlet Connection
CGA-580
Type
Single Stage Flowmeter Regulator
Item
Flowmeter Regulator
General
Application
For Mig and Tig Welding Applications
Inlet Connection Size
0.965"-14
Argon Flow Rate (Maximum)
60 scfh
Inlet Connection Type
NGO
Argon Flow Rate (Minimum)
1 scfh
Inlet Thread Direction
Right Hand
CGA Connection Outlet
5/8"-18 RH Internal
Maximum Flow Rate
60 scfh (Argon) ; 50 scfh (Carbon Dioxide) ; 160 scfh (Helium)
CGA Number
CGA 580
Maximum Gauge Inlet Pressure
3,000 psig
Carbon Dioxide Flow Rate (Maximum)
50 scfh
Mounting Type
Cylinder
Carbon Dioxide Flow Rate (Minimum)
1 scfh
Number of Stages
Single Stage
Compatible Gas Type
Argon, Carbon Dioxide, Helium
Outlet Connection Gender
Female
Flowmeter Series
H2051
Outlet Connection Size
5/8"-18
Gauge Diameter
1 1/2 in
Outlet Connection Type
UNF
Helium Flow Rate (Maximum)
160 scfh
Outlet Pressure (Maximum)
50 psig
Helium Flow Rate (Minimum)
1 scfh
Outlet Thread Direction
Right Hand
Includes
Precision Flow-Adjustment Valve
Regulator Application
Welding
Inlet Connection Gender
Female
Product Description
Flowmeter regulators incorporate flowmeter and regulator into one compact unit. Use for shielding gas with argon or CO2 in MIG and TIG welding.
Expertly Selected Product Pairings
Item Barcode
Flowmeter Regulator, 1 Stage
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5EFX9 | FLOWMETER REGULATOR |
 | UNSPSC CODES | 40142201 | |
 | VMRS (ATA) CODES | 053-007-022 |
