Technical Specifications
Key Specifications
Adjustment
0 to 140 psi
Mfr. Part Number
R37341-600
Adjustment Knob
Standard
NPT
1/2 in.
Air Consumption
scfm
Overall Height
5-1/2 in.
Body Material
Aluminum
Overall Length
3.13 in.
Brand
ARO
Overall Width
2-3/4 in.
Includes
Gauge Component, Panel Nut
Pack Quantity
1
Item
General Purpose Air Regulator
Pipe Size
1/2 in.
Length
3.1 in.
Series
2000
Maximum Flow
210 cfm
Shipping Weight
1.4 lb.
Maximum Inlet Pressure
250 psi
Type
Aluminum
Maximum Pressure
250 psi
Valve Design
Balanced
Maximum Temperature
140 deg. F
General
Adjustment Mechanism
Knob
Max. Inlet Pressure - Regulators
250 psi
Adjustment Mechanism Material
Acetal
Maximum Regulated Pressure
140 psi
Adjustment Range
0 to 140 psi
Minimum Regulated Pressure
0 psi
Adjustment Range - Regulators
0 to 140 psi
Modular Connection
Modular Connection
Air Inlet Gender
Female
Overall Height - Regulators
5.5 in
Air Inlet Type
NPT
Overall Width - Regulators
2.75 in
Air Outlet Gender
Female
Pipe Size - Regulators
1/2 in
Air Outlet Size
1/2 in
Pressure Gauge Included
Yes
Air Outlet Type
NPT
Pressure Gauge Port Size
1/2 in
Compressed Air Regulator Product Grouping
General Purpose Air Regulator
Pressure Gauge Port Type
NPT
For Fluid Type
Air
Regulator Body Material
Aluminum or Zinc
For Substance Type
Air
Regulator Type
Relieving
Gauge Port
1/2 in NPT
System Location
Air Line
Max. Flow - Regulators
210 cfm
Product Description

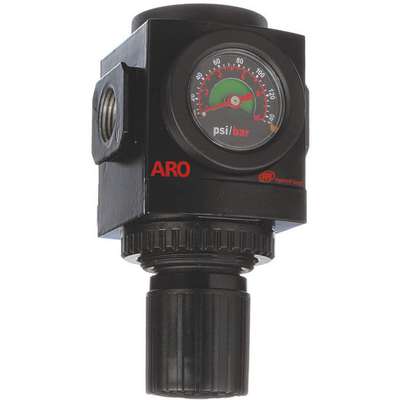

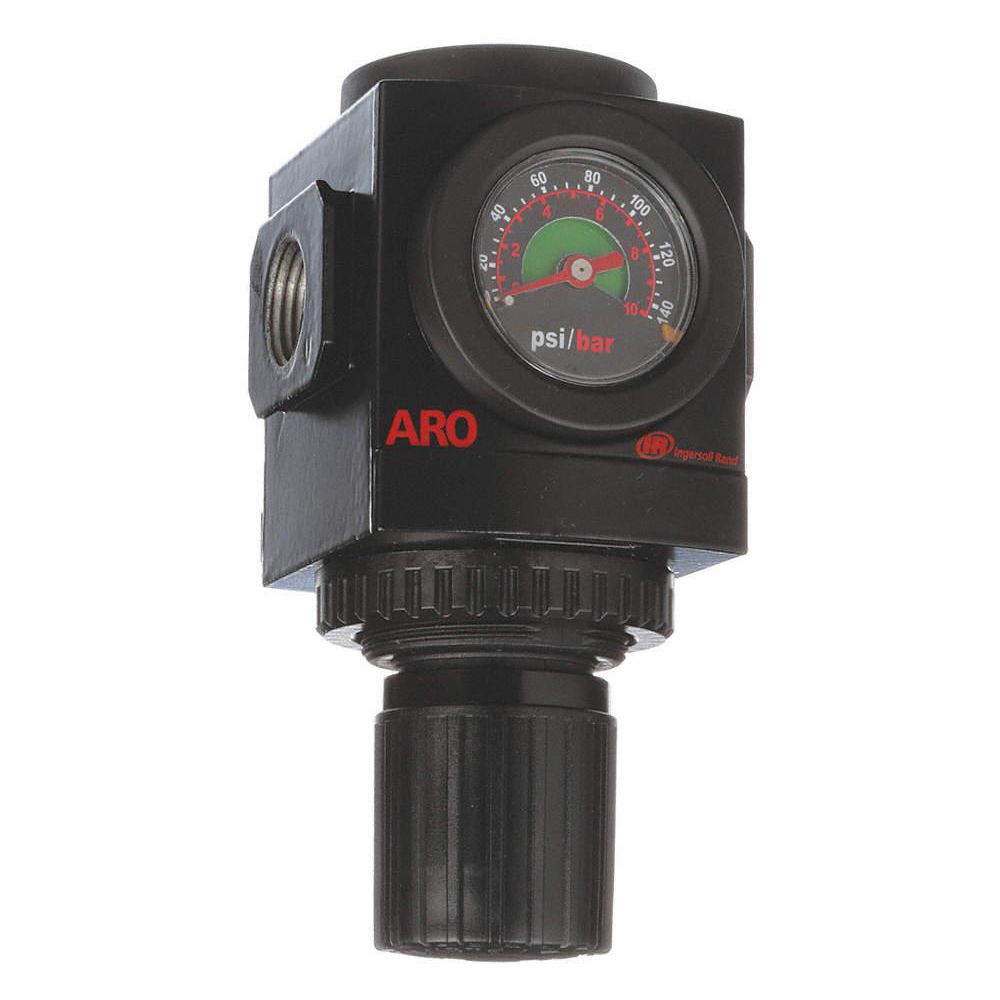

Provides controlled, consistent air pressure.
Item Barcode
Air Regulator, 1/2 NPT
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 6CRN0 | AIR REGULATO R, 1/2 NPT |
|
UNSPSC CODES | 27131603 | |
|
VMRS (ATA) CODES | 053-007-002 |
