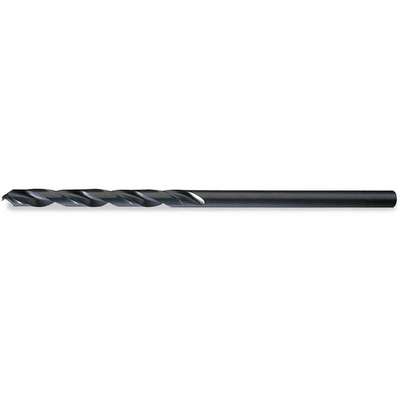

Extra Long Jobber Length Drill Bit, Drill Bit Size 3/8", Overall Length 12", High Speed Steel

Hover over image to magnify
Extension Drill, 3/8 X 12 In
Extension Drill, 3/8 X 12 In
Extra Long Jobber Length Drill Bit, Drill Bit Size 3/8", Overall Length 12", High Speed Steel Video

#911359-7 | Pkg Qty: 1

$31.60 pkg | $31.60 ea
Item Number 911359-7
Scanner Description Extension Drill, 3/8 X 12 In
Inventory Status Drop Ship Item
Weight 0.32 lb
Brand CHICAGO-LATROBE

Technical Specifications

Key Specifications
Application
For Alloy And Carbon Steel And Cast Iron
Helix Angle
28
Brand
CHICAGO-LATROBE
Item
Extra Long Drill Bit
Coolant Through
No
List Number
912CAT
Cutting Direction
Right Hand
Maximum Drilling Depth
1-1/2 in.
Decimal Equivalent
3/8
Mfr. Part Number
40582
Depth x Diameter Ratio
5xD
Number of Flutes
2
Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
12 in.
Drill Bit Finish
Black Oxide
Pack Quantity
1
Drill Bit Material
High Speed Steel
Point Angle
135 deg.
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
3/8 in.
Series
912
Drill Point Length
0.0777 in.
Shank Diameter
3/8 in.
Finish
Black Oxide
Shank Length
8-3/8 in.
Flute Length
3-5/8 in.
Shipping Weight
0.32 lb.
Flute Type
Spiral
Spiral Direction
Right Hand
Grade
Heavy Duty
Standards
Not Rated
General
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Depth:Dia. Ratio
4xD
Material Grade - Machining
High Performance
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Shank Dia.
3/8 in
Drill Length Class
Extra Long
Shank Type - Machining
Straight
Finish - Machining
Black Oxide

Product Description

These extended-length drill bits meet National Aerospace Standards (NAS) 907 Type B for drill bits used in aircraft repair and production. They have a black-oxide finish that retains lubricants to improve their wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece. These bits do not have coolant holes, so a separate hose is required to bring coolant to the bits' tip if it is needed.

Item Barcode
9113597
  Name Item Description
Grainger Dropship Grainger Dropship 4ZP14 EXTENSION DR ILL, 3/8X12
UNSPSC CODES UNSPSC CODES 20111614
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002
