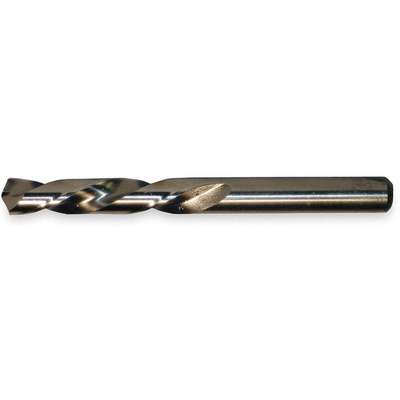

Hover over image to magnify
#911338 | Pkg Qty: 1
$5.00 pkg
| $5.00 ea
Technical Specifications
Key Specifications
Basic Drill Bit Material
Cobalt
Left/Right Hand
Left Hand
Brand
CLE-LINE
List Number
1880
Cutting Direction
Left
Maximum Drilling Depth
5/8 in.
Cutting Direction
Left Hand
Mfr. Part Number
C30510
Decimal Equivalent
0.1562
Number of Flutes
2
Depth x Diameter Ratio
5xD
Number of Pieces
1
Dimension Type
Fractional Inch
Overall Length
2-3/4 in.
Drill Bit Dimension Type
Fractional Inch
Pack Quantity
1
Drill Bit Finish
Straw/Bronze
Point Angle
135 deg.
Drill Bit Material
Cobalt Steel
Point Type
Split Point
Drill Bit Point Angle
135 deg.
Series
1880
Drill Bit Size
5/32 in.
Shank Diameter
0.15625 in.
Drill Point Length
0.0324 in.
Shank Length
1-1/16 in.
Flute Length
1-11/16 in.
Shank Type
Straight
Flute Type
Spiral
Shipping Weight
.01 lb.
Grade
Heavy Duty
Spiral Direction
Left Hand
Helix Angle
28
System of Measurement
Fractional
Item
Mechanics Length Drill Bit
Type
Mechanics Length Drill Bit
General
Application
For Use On Hard Material, Stainless Steel, Titanium and Inconel
Finish - Machining
Straw/Bronze
Coolant Fed
Non-Coolant Through
Material - Machining
Cobalt
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
H, K, M, P, S
Drill Bit Point Type
Split Point
Shank Dia.
9/64 in
Drill Diameter Tolerance
+0.0000 in /-0.0007 in
Shank Type - Machining
Straight
Drill Length Class
Mechanics Length
Standards
ASME B94.11M
Product Description
These bits have a left-hand drilling direction and can be used in reverse-drilling applications to remove broken screws from a hole. These drill bits have a straw/bronze finish that reduces grinding stress on the cutting edges. The bits are made from high-speed steel, which provides some flexibility and absorbs some shock and vibration.
Documents
Item Barcode
Mech Drill Bit, Lh, Co, 5/32
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 1TPF2 | MECH DRILL, LH, CO 5/32 |
|
UNSPSC CODES | 20111614 | |
|
VMRS (ATA) CODES | 053-006-009 | SOCKET, IMPA CT, 1/2-DR |
