SQUARE D

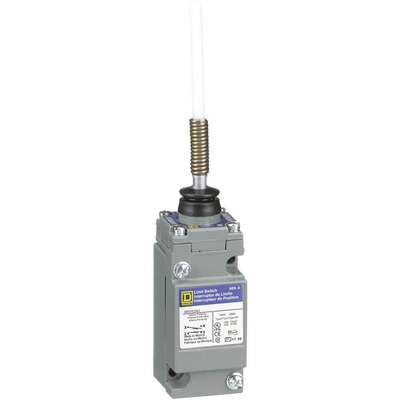

Square D Wobble Stick Heavy Duty Limit Switch; Location: Top, Contact Form: 1NC/1NO, Any Direction Movement

Hover over image to magnify
Switch, Limit, Spdt, C
PI_Asset_965581
Switch, Limit, Spdt, C
PI_Asset_965581

#911331-9 | Pkg Qty: 1

$264.30 pkg | $264.30 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 600 V
Item
Heavy Duty Limit Switch
Accessory Group
A
Limit Switch Style
Heavy Duty Limit Switch
Actuator Length
4.25 in.
Mfr. Part Number
9007C54J
Actuator Location
Top
Movement
Any Direction
Actuator Style
Wobble Stick
NEMA Rating
1, 2, 4, 6, 6P, 12, 13
Amperage
10 A
Operating Force
3.00 in.-lb.
Basic Actuator Style
Wobble Stick
Operating Temperature Range
185 deg. F
Body Depth
1.14 in.
Package Quantity
1
Body Height
2-1/2 in.
Replacement Body
2EG11
Body Material
Zinc
Replacement Head
2EG74
Body Style
Miniature
Replacement Receptacle
2EG22
Body Width
0.83 in.
Series
9007C
Boot Sealed Actuator
No
Shipping Weight
1.1 lb.
Brand
SQUARE D
Style
Wobble Stick Delrin Extension
Contact Form
1NC/1NO
Threaded for Panel Mounting
No
DC Contact Rating
10 A @ 600 V
Travel
Total Travel 90
Depth
1.79 in.
Type
Heavy Duty, Oil Tight
Electrical Connection
Screw Terminals
Voltage
600 VAC/DC
Footnotes
4
Voltage Rating
600 VAC/DC
Hazardous Location
No
Width
1.55 in.
Height
4.02 in.
Wiring Entry
1/2 in. NPT
IP Rating
67
General
AC Contact Rating - Limit Switch
10A @ 600V
Contact Form- Switches
1NC/1NO
Actuator Length - Limit Switch
4.25 in
DC Contact Rating - Limit Switch
10A @ 600V
Actuator Location - Limit Switch
Top
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
Wobble Stick
Mounting Hole - Limit Switch
(2) 0.20 in dia
Basic Actuator Style - Limit Switch
Wobble Stick
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Body Depth - Limit Switch
1.14 in
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Body Height - Limit Switch
2.5 in
Operating Temp. Range
0° to 185°F
Body Style - Limit Switch
Miniature
Standards
UL, CSA, CE
Body Width - Limit Switch
0.83 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Threaded for Panel Mounting - Limit Switch
No

Product Description

This heavy-duty limit switch features a wobble-stick actuator and zinc body construction.
