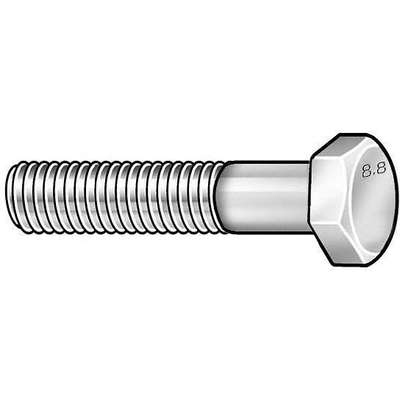

Hex Head Cap Screw: Steel, Class 8.8, Zinc Plated, M12-1.25 Thread Size, Extra Fine, 19 mm Head Wd
Hover over image to magnify
#911319-4 | Pkg Qty: 10
$14.70 pkg
| $1.47 ea
Technical Specifications
Key Specifications
Basic Material
Steel
Head Width
19 mm
Brand
APPROVED SUPPLIER
Industry Designation
HHCS
Class
6h
Item
Cap Screw
Diameter/Thread Size
M12-1.25
Length Under Head
65 mm
Fastener Diameter
12 mm
Material
Carbon Steel
Fastener Finish
Zinc Plated
Meets/Exceeds
DIN 960
Fastener Head Height
7.5 mm
Metric Class
8.8
Fastener Industry Standards
DIN 960
Minimum Thread Length
30mm
Fastener Length
65 mm
Pack Quantity
10
Fastener Material Grade/Class
Class 8.8
Proof Load
92,800 psi
Fastener Tensile Strength
116000 psi
Rockwell Hardness
C22 to C32
Fastener Thread Style
Partially Threaded
System of Measurement
Metric
Fastener Thread Type
Metric Fine
Thread Direction
Right
Finish
Zinc Plated
Thread Length
1-1/4 in.
Head Height
7-1/2 mm
Thread Type
Fine/ SAE/ UNF
Head Type
Hex Head
Type
Medium Strength
General
Head and Washer Height
7.5 mm
Threadlocker Maximum Temperature
1.25 mm
Proof Load (PSI)
92,800
Product Description
Hex Head Cap Screws feature hexagon-shaped heads for socket or wrench tightening. Class 8.8 steel cap screws are quenched and tempered. They are hard, yet malleable, allowing them to withstand shear force. Class 8.8 steel cap screws are comparable to Grade 5 steel cap screws.
Documents
Item Barcode
Hex Cap Screw, M12X1.25X65MM
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 1GLZ7 | HEX CAP SCR M12X1.25X65M |
|
UNSPSC CODES | 31161501 | |
|
VMRS (ATA) CODES | 053-006-009 |
