CAROL

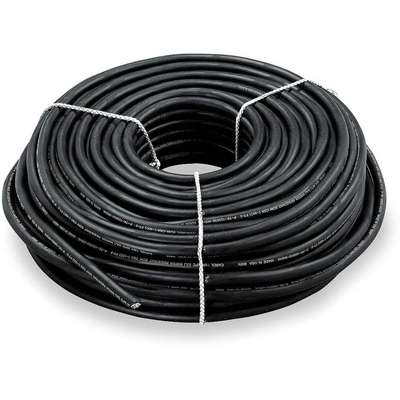

100 ft. Portable Cord; Conductors: 3, Wire Size: 10 AWG, Jacket Type: SOOW, Jacket Color: Black

Hover over image to magnify
Cord, Portable, 100 Ft
Cord, Portable, 100 Ft
100 ft. Portable Cord; Conductors: 3, Wire Size: 10 AWG, Jacket Type: SOOW, Jacket Color: Black Video

#911318-2 | Pkg Qty: 1

$319.58 pkg | $319.58 ea
Catalog:

Technical Specifications

Brand
CAROL
Nominal Outside Diameter
0.660 in.
Color Family
Black
Number of Conductors
3
Conductor
Stranded Copper
Pack Quantity
1
Conductor Material
Copper
Shipping Weight
32 lb.
Description/Special Features
Indoor/Outdoor Use
Special Features
3.96 in. Minimum Bend Radius, Excellent resistance to Oil, High flexibility, moisture and abrasion
Features
Excellent resistance to Oil, moisture and abrasion, High flexibility
Spool Length
100 ft.
Gauge/Conductor
2022-10-03
Spool/Coil Length
100 ft.
Indoor/Outdoor
Indoor/Outdoor
Standards
OSHA and Bureau of Mines (MSHA)
Item
Portable Cord
Stranded / Solid
Stranded
Jacket Color
Black
Temperature Range
-40 deg. F to 194 deg. F
Jacket Material
EPDM Rubber
Voltage
600 V
Jacket Type
SOOW
Wire Color
Black, White, Green
Length
100 ft.
Wire Size
10 AWG
Maximum Amps
30
Wire and Cable Item
Portable Cord
Maximum Voltage
600 V
Wire/Cable Size
10 AWG
Mfr. Part Number
00.82JO.27255

Product Description

SOOW and SJOOW portable cord are types of heavy-duty service cord with oil-resistant insulation and a flexible thermoset rubber jacket that is oil-, water-, and weather-resistant. The jacket hardens under a direct application of heat. This allows the cord to be unaffected by aging, abrasion, water, sunlight, and ozone, making it extremely durable. SOOW cord is rated for 600V while SJOOW, a junior service cord, is rated for 300V. SOOW is the most popular type of portable cord and is typically used to power industrial applications, such as machines and power tools, and marine applications, such as dockside motors.

Portable cord is flexible, moveable electrical cable that consists of one or more insulated conductors enclosed in a jacket. It is typically used for temporary power connections. Portable cord can be exposed to constant flexing and harsh environmental conditions, including temperature extremes, oil, chemicals, and abrasive materials. There are multiple types of portable cord, as designated by industry standard letter codes that describe various attributes (temperature range, wire size) and ratings (voltage) and help ensure the best cord is selected for an application. Portable cord is commonly used for temporary wiring projects in industrial and commercial facilities, such as supplying power to portable tools, appliances, and equipment, as well as small motors and associated machinery. It does not include plugs on the ends of the cord.
