SCHNEIDER ELECTRIC

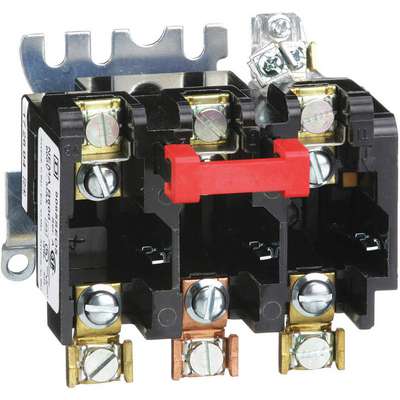

Schneider Electric Thermal NEMA Overload Relay, Current Range: 19.0 to 27.0A, NEMA Size: 1
Hover over image to magnify
#911260-4 | Pkg Qty: 1
$162.09 pkg | $162.09 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Sensing Method
Thermal
Current Range
19.0 to 27.0A
Shipping Weight
1 lb.
Item
NEMA Overload Relay
Type
3 Pole
Mfr. Part Number
9065SEO5
Voltage
600 VAC
Number of Poles
3
Width
3.53 in.
Package Quantity
1
General
Body Depth - Relay
3.97 in
Reset Type - Relay
No Reset
Body Height - Relay
3.31 in
Separate Mounting
Yes
Body Width - Relay
3.53 in
Thermal Units Required
Yes
For Use With
Size 1 Starters
Trip Class
10/30
NEMA Size
00 - 1
Trip Class - Overload
Determined by Thermal Units Selected
Overall Height - Relay
3.31 in
Use With - Contactors and Starters
Mfr. Class 8536 Starters
Overload Relay Current Range
19 to 27A
Product Description
This overload relay is designed for use with NEMA motor starters. It can help adjust the maximum current the motor is allowed to draw before the starters shut the motor down.
Item Barcode
Relay,Thermal,Overload,25AMPS
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2BZ24 | RELAY,OVER LOAD,THERMAL |
 | UNSPSC CODES | 39122330 | |
 | VMRS (ATA) CODES | 053-007-002 |
