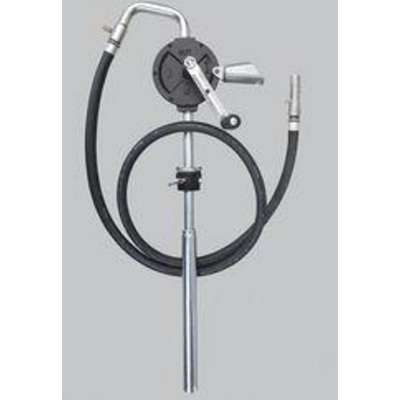

Hand Operated Drum Pump, Rotary, Unmetered Dispensing with Manual Shut-Off

Hover over image to magnify

#911225-5Pkg Qty: 1

$346.86 pkg

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Action Type

Rotary

Adapter Diameter

2 in.

Adapter Material

Cast Iron

Agency Compliance

FM Approved

Brand

DAYTON

Discharge Tube Length

96"

For Use On

16 to 55 Gal. Drums

GPM

10 @ 120 rpm

Hand Operated Pump Action Type

Hand Operated Rotary Pumps

Height

9-1/2 in.

Housing Material

Cast Iron

Inlet Size

3/4" FNPT

Item

Hand Operated Drum Pump

Maximum Head

10 ft.

Maximum Liquid Temperature

250°F

Maximum Pressure

10 psi

Maximum Viscosity

2000 SSU

Metered

Mfr. Part Number

4VCR4

Ounces per Stroke

Up to 10 GPM

Outlet Size

3/4" FNPT

Overall Length

10-7/8 in.

Package Quantity

Pump Body Material

Cast Iron

Seal Material

Graphite

Shipping Weight

22.37 lb.

Wetted Materials

Cast Iron, Graphite, Paper, Polypropylene, Steel

Action Type

Rotary

Maximum Liquid Temperature

250°F

Adapter Diameter

2 in.

Maximum Pressure

10 psi

Adapter Material

Cast Iron

Maximum Viscosity

2000 SSU

Agency Compliance

FM Approved

Metered

Brand

DAYTON

Mfr. Part Number

4VCR4

Discharge Tube Length

96"

Ounces per Stroke

Up to 10 GPM

For Use On

16 to 55 Gal. Drums

Outlet Size

3/4" FNPT

GPM

10 @ 120 rpm

Overall Length

10-7/8 in.

Hand Operated Pump Action Type

Hand Operated Rotary Pumps

Package Quantity

Height

9-1/2 in.

Pump Body Material

Cast Iron

Housing Material

Cast Iron

Seal Material

Graphite

Inlet Size

3/4" FNPT

Shipping Weight

22.37 lb.

Item

Hand Operated Drum Pump

Wetted Materials

Cast Iron, Graphite, Paper, Polypropylene, Steel

Maximum Head

10 ft.

General

Adapter Connection Type

NPT

Adapter Type

2" Bung

Application

Oil based Media, Diesel, Kerosene, Non Corrosive Media. Solvent Kit is Available

Discharge Tube Outlet ID

3/4 in

Discharge Tube Outlet ID Size

3/4"

Discharge Tube Outlet OD

1 1/8 in

Discharge Tube Outlet Outside Diameter

1-1/8"

Discharge Tubing Material

Zinc Plated Steel, Neoprene Rubber Hose, Aluminum Nozzle

Features

1. Industry Standard for Rotary Pumps, These are By Far the Heaviest Duty, Ideal for Tough Outdoor Use in Extreme Weather Conditions, 2. Solid Cast Iron Construction, Fully CNC Machined to Close Tolerances, 3. Graphite Vanes are Self-Lubricating and Non-Wearing, 4. High Quality Graphite Seals Allows the Pump to be Used with a Wide Variety of Fluids, Including Diesel with up to 15% Ethanol Blend

Fits

2" Bung

For Container Size

55 gal

For Container Type

Drum

For Media Type

General Purpose

For Use With

Diesel, Kerosene, Non Corrosive Media Solvent Kit is Available, Oil based Media

Gasket Material

Paper

Hose Cover Material

Rubber

Hose Inside Dia.

3/4 in

Hose Length

8 ft.

Hose Tube Material

Rubber

Includes

3/4 in x 8 ft Anti-Static Rubber Hose, Baffle and Strainer, Nozzle, Nozzle Holder, Vacuum Breaker

Includes Bung Adapter

Yes

Includes Discharge Hose

Yes

Includes Nozzle

Yes

Includes Suction Tube

Yes

Max. Fluid Temp.

250 Degrees F

Maximum Air Inlet PSI

Maximum GPM for Oil

Nozzle Operation

Manual

Power Source

Hand Operated

Pump Package Type

Unmetered Dispensing with Manual Shut-Off

Seal

Graphite

Self-Priming

Yes

Suction Design

Telescopic

Suction Tube Outlet Outside Diameter

1 in.

Suction Tube Type

Telescopic

Type

Rotary Action, FM

Adapter Connection Type

NPT

Hose Tube Material

Rubber

Adapter Type

2" Bung

Includes

3/4 in x 8 ft Anti-Static Rubber Hose, Baffle and Strainer, Nozzle, Nozzle Holder, Vacuum Breaker

Application

Oil based Media, Diesel, Kerosene, Non Corrosive Media. Solvent Kit is Available

Includes Bung Adapter

Yes

Discharge Tube Outlet ID

3/4 in

Includes Discharge Hose

Yes

Discharge Tube Outlet ID Size

3/4"

Includes Nozzle

Yes

Discharge Tube Outlet OD

1 1/8 in

Includes Suction Tube

Yes

Discharge Tube Outlet Outside Diameter

1-1/8"

Max. Fluid Temp.

250 Degrees F

Discharge Tubing Material

Zinc Plated Steel, Neoprene Rubber Hose, Aluminum Nozzle

Maximum Air Inlet PSI

Features

Maximum GPM for Oil

Fits

2" Bung

Nozzle Operation

Manual

For Container Size

55 gal

Power Source

Hand Operated

For Container Type

Drum

Pump Package Type

Unmetered Dispensing with Manual Shut-Off

For Media Type

General Purpose

Seal

Graphite

For Use With

Diesel, Kerosene, Non Corrosive Media Solvent Kit is Available, Oil based Media

Self-Priming

Yes

Gasket Material

Paper

Suction Design

Telescopic

Hose Cover Material

Rubber

Suction Tube Outlet Outside Diameter

1 in.

Hose Inside Dia.

3/4 in

Suction Tube Type

Telescopic

Hose Length

8 ft.

Type

Rotary Action, FM

Product Description

Automotive fluids, fuel, and oil hand drum pumps are designed for dispensing and transferring small volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. These pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
