SCHNEIDER ELECTRIC

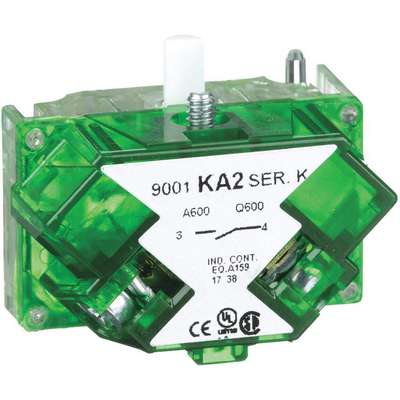

Schneider Electric Contact Block, 30mm, 1NO Contact Form, 10A @ 600VAC Contact Rating

Hover over image to magnify
Contact Block, 30Mn, No
PI_Asset_1028714
Contact Block, 30Mn, No
PI_Asset_1028714

#911114-1 | Pkg Qty: 1

$28.44 pkg | $28.44 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action
Momentary
Mfr. Part Number
9001KA2
Amperage
10 AC/2.5 DC
NEMA Contact Rating Designation
A600/Q600
Application
Finger Safe Operator
Package Quantity
1
Brand
SCHNEIDER ELECTRIC
Product Size
30 mm
Color Family
Green
Shipping Weight
.05 lb.
Contact Form
1NO
Size
30 mm
Contact Rating
10 A @ 600 VAC
Terminal Connection
Screw/Clamp
Contact Type
1NO
Type
Standard Direct Acting
For Use With
Schneider 9001K Series 30mm Operators
Type of Operator
Finger Proof Shroud
Item
Contact Block
Wire Range
#12-24
General
Standards
UL, CSA, CE

Product Description

30mm Contact Blocks

  • NEMA rated A600-P600 #12 to 24 AWG wire range allows use of more common small wire sizes
  • Terminals are at 20° angle to eliminate interference with other contact blocks mounted in tandem. Feature double-break fine silver contacts with wiping action.
