SAFTCART

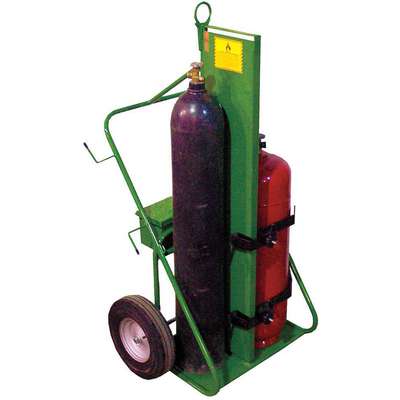

Saftcart Welding Cylinder Truck,Continuous Frame, 780 lb., Cylinder Capacity 2, 62" H X 35"W

Hover over image to magnify
Hand Truck, Welding Cylinders
Hand Truck, Welding Cylinders

#911080-7 | Pkg Qty: 1

$1,125.28 pkg | $1,125.28 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Base Plate Dimensions
13 x 24 in.
Maximum Tank Diameter Oxygen
9-1/2 in.
Brand
SAFTCART
Mfr. Part Number
552-16FW
Color Family
Green
Overall Depth
12-1/2 in.
Construction
Steel
Overall Height
62 in.
Cylinder Capacity
2
Overall Width
35 in.
Finish
Powder Coated
Package Quantity
1
Hand Truck Handle Type
Continuous Frame
Shipping Weight
139 lb.
Hand Trucks Group
Cylinder Hand Trucks
Type
Standard
Item
Welding Cylinder Truck
Wheel Bearings
Ball
Load Capacity
780 lb.
Wheel Diameter
16 in.
Material
Steel
Wheel Type
Pneumatic
Maximum Tank Diameter Acetylene
12-1/2 in.
Wheel Width
4 in.
General
Assembled
Yes
Includes Lever Pushoff
Without Lever Pushoff
Axle Dia.
3/4 in
Includes Lift Ring
With Lift Ring
Axle-Mounted Wheel Bearings
Ball Bearing
Includes Stair Climber
Without Stair Climber
Axle-Mounted Wheel Dia.
16 in
Lifting Ring Inside Diameter
3 in
Axle-Mounted Wheel Type
Pneumatic
Max. Tank Dia. Acetylene
12 1/2 in
Axle-Mounted Wheel Type/Material
Pneumatic Rubber
Max. Tank Dia. Oxygen
9 1/2 in
Axle-Mounted Wheel Width
4 in
Non-Marking Axle-Mounted Wheels
No
Axle-Mounted Wheel/Tread Material
Rubber
Nose Plate Depth
13 in
Brake Type
No Caster Brake
Nose Plate Material
Steel
Caster/Wheel Configuration
(2) Axle-Mounted
Nose Plate Profile
Standard
Caster/Wheel Mounting Location
2-Wheel
Nose Plate Thickness
3/32 in
Compatible with Product Type
Welding Cylinders and Torches
Nose Plate Type
Solid Straight
Cylinder Orientation
Side by Side
Nose Plate Width
24 in
Firewall Rating
1-hour
Nose Plate WxD
13 in x 24 in
Firewall Thickness
1 in
Overall Height - Cylinder Lowered
66 in
For Maximum Container Diameter
12 1/2 in
Overall Height - Cylinder Raised
62 in
For Maximum Cylinder Diameter
12 1/2 in
Overall HxWxD
66 in x 35 in x 12 1/2 in
For Surface Type
Concrete, Grass, Wood
Securing Mechanism
Perma Clamp
For Use With
Welding Cylinders and Torches
Securing Mechanism Height
26 in
Hub Position
Offset
Standards
OSHA 1910.253
Includes
Chain to Secure Cylinder, Firewall, Toolbox
Tool Tray Height
29 in
Includes Firewall
Yes
Tool Tray Width
22 1/2 in
Includes Foot Assist
Without Foot Assist

Product Description

Firewall welding cylinder hand trucks are used to move oxygen and acetylene gas cylinders in welding applications where cylinders may be stored on the trucks for long periods of time (more than 24 hours). They have a steel firewall that creates a barrier between the two cylinders and helps prevent fires or explosions. The firewall also protects the cylinders from damage during transfer and storage.
