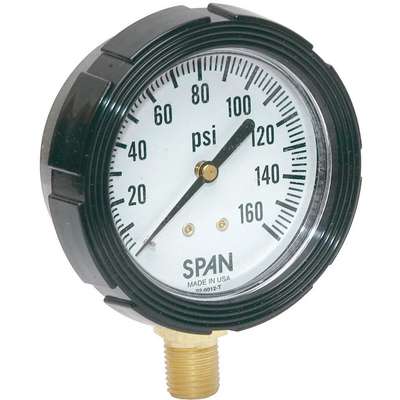

Industrial Pressure Gauge: 0 to 160 psi, 2 1/2 in Dial, Liquid-Filled, 1/4 in NPT Male, Bottom
Hover over image to magnify
#911053-5 | Pkg Qty: 1
$78.73 pkg | $78.73 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bezel Material
Zytel Nylon
Gauge Sensor Material
Phosphor Bronze
Brand
SPAN
Gauge Socket Material
Brass
Calibration Certificate Included
Yes, NIST with Data
Hazardous Location Rating
Not Rated
Gauge Accuracy
±1.0%
Item
Industrial Pressure Gauge
Gauge Application
Fire Monitoring, Hydraulics, Marine, Military, Transportation, Waste Water or Slurry, Water Purification or Irrigation
Liquid Filled
Yes
Gauge Case Color
Black
Mfr. Part Number
LFS-210-160-G-CERT
Gauge Case Material
Zytel Nylon
Mounting Type
Stem-Mount
Gauge Connection Location
Bottom
Non-Sparking
No
Gauge Connection Size
1/4 in.
Operating Temperature Range
-40 deg. F to 150 deg. F
Gauge Connection Type
MNPT
Package Quantity
1
Gauge Filled With
Glycerin
Pressure Range
0 to 160
Gauge Lens Material
Acrylic
Series
LFS-210
Gauge Nominal Dial Size
2-1/2 in.
Shipping Weight
.85 lb.
Gauge Panel Mountable
No
Vibration Resistance
Liquid-Filled
Gauge Primary Range Units
psi
General
Accuracy Grade
ASME B40.100 Grade 1A
Pointer Material
Aluminum
Accuracy Scale
Full Scale
Pressure Gauge Type
Industrial Pressure Gauge
Bezel Mounting Type
Removable
Pressure Range Type
Pressure
Case Construction
Corrosion Resistant
Pressure and Vacuum Gauge Type
Pressure Gauge
Case Depth
1.41 in
Primary Pressure Range
0 to 160
Case Diameter
2.8 in
Primary Scale Minor Graduations
2
Dial Face Material
Aluminum
Primary Scale Numeric Increments
20
Dry Dampening Feature
None
Primary Scale Units
psi
Gauge Accuracy Grade
Grade 1A - Industrial
Process Connection
1/4 in NPT Male
Gauge Case Liquid
Glycerin
Process Connection Gender
Male
Gauge Wetted Parts
Brass / Bronze
Process Connection Location
Bottom
IP/NEMA Rating
IP65, NEMA 4X
Process Connection Size
1/4 in
Includes Calibration Certificate
NIST with Data
Process Connection Type
NPT
Lens Material - Gauge
Plastic
Removable Bezel
Yes
Liquid-Filled Case
Yes
Scale Type
Single
Movement Material
Copper Alloy
Sensor Material
Phosphor Bronze
Movement Type
Swiss
Sensor Type
Bourdon Tube
Nominal Dial Size
2 1/2 in
Standards
ANSI/ASME
Product Description
This gauge features plastic case construction to resist corrosion and impact in demanding applications.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Pressure Gauge,2-1/2" 0-160PSI
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5NMW0 | PRESS GAUGE 2-1/2",0-160 |
 | UNSPSC CODES | 41112403 | |
 | VMRS (ATA) CODES | 053-008-007 | PRESSURE GAUGE |
