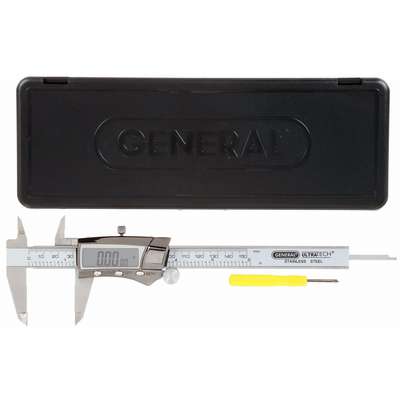

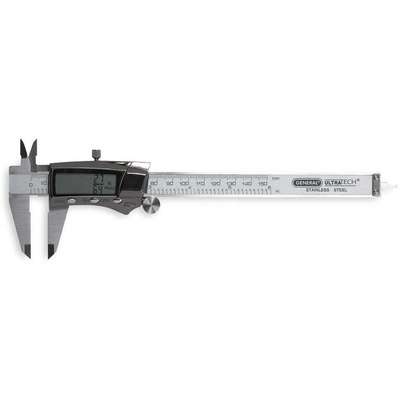

General Fractional Digital Caliper 0-6"/0-150mm Range, 0.0005"/0.01mm/1/64" Resolution, Stainless Steel
Hover over image to magnify
#910860-2 | Pkg Qty: 1
$62.10 pkg
| $62.10 ea
Technical Specifications
Key Specifications
Absolute Positioning
Yes
IP Rating
Not Rated
Accuracy
±0.001 in./0.03mm
Item
Fractional Digital Caliper
Application
Three Mode Digital Display Of Fractional, Inch And Millimeter
Material
Stainless Steel
Brand
GENERAL
Mfr. Part Number
147
Calibration Certificate
No
Output
No
Caliper Material
Stainless Steel
Pack Quantity
1
Caliper Range
0-6 in./0-150mm
Range
0-6 in./0-150 mm
Case
Molded Plastic
Resolution
0.0005 in./0.01mm/1/64 in.
Characteristics
Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and In/mm/Fraction, Automatic On/Off
SPC Output
No
Display
Large LCD
Type
Fractional
Features
Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and In/mm/Fraction, Automatic On/Off
General
Battery Size
SR44
Maximum Measurement - mm
153 mm
Case Type
Foam Padded
Measurements
4-Way
Coolant Resistant
No
Measures Depth
Yes
Graduations - Lower Scale
0.1 in
Measures Inside Dimension
Yes
Graduations - Upper Scale
1 mm
Measures Outside Dimension
Yes
Includes Battery
Yes
Measures Step
Yes
Includes Case
Yes
Minimum Measurement - Fractional Inch
0 in
Jaw Actuation Type
Thumb Wheel
Minimum Measurement - Inch
0 in
Jaw Shape
Standard
Minimum Measurement - mm
0 mm
Long Form Calibration Certificate
No
With Locking Nut
Yes
Maximum Measurement - Inch
6 in
Product Description
Fractional-display digital calipers have a linear encoder for performing measurements and an LCD that displays measurements in 1/64” increments with inch and metric resolution. These calipers do not have SPC capability. They are commonly used in carpentry applications and for the production of parts and products with precise fractional dimensions.
Item Barcode
Caliper, 6" Electronic GNRL147
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 1XHP6 | CALIPER, 6" ELECTRONIC |
|
UNSPSC CODES | 41111621 | CALIPER |
|
VMRS (ATA) CODES | 053-006-009 | CALIPER |
