IRWIN

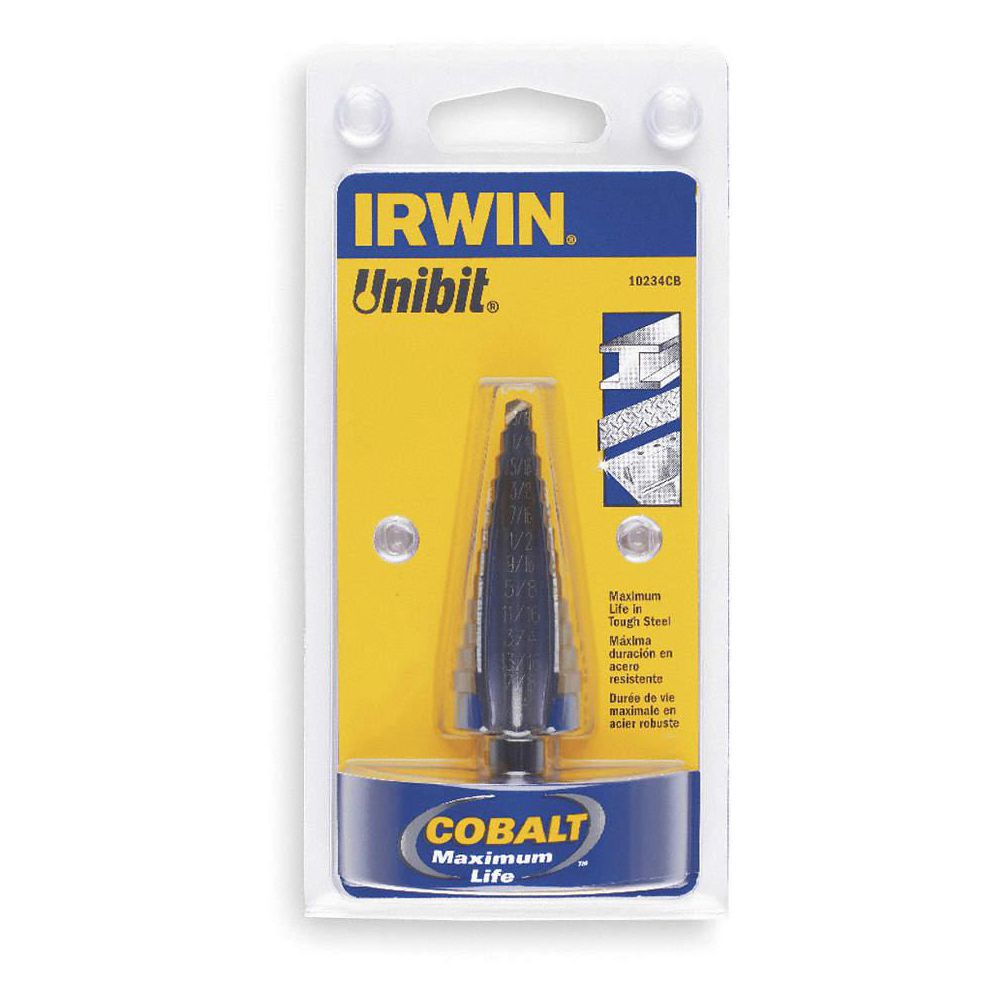

Step Drill Bit, Cobalt Steel, 12 Hole Sizes, 1/16" Step Thickness, 3/16" - 7/8"

Hover over image to magnify
Cobalt Step DRILL3/16-7/8x1/16
Cobalt Step DRILL3/16-7/8x1/16

#910762-9 | Pkg Qty: 1

$121.02 pkg | $121.02 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
IRWIN
Minimum Hole Size
3/16 in.
Cutting Direction
Right
Number Hole Sizes
12
Cutting Direction
Right Hand
Number of Flutes
1
Drill Bit Finish
Black Oxide
Overall Length
2-7/8 in.
Drill Bit Material
Cobalt Steel
Pack Quantity
1
Drill Bit Shank Shape
Hex
Series
UNIBIT
Flute Type
Radial
Shank Diameter
3/8 in.
Increments
1/16 in.
Shipping Weight
.2 lb.
Item
Step Drill Bit
Size Range
3/16 in. to 7/8 in.
Maximum Drilling Depth
1/8 in.
Sizes Included
3/16 in., 1/4 in., 5/16 in., 3/8 in., 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in., 7/8 in.
Maximum Hole Size
7/8 in.
Step Drill Bit Shank Type
Straight with Three Flats
Mfr. Part Number
10234CB
Step Thickness
1/16 in.
General
Application
Aluminum, Brass, Copper, Laminate, Steel, Plastic, Stainless Steel, Hardened Steel, Wood
Material - Machining
Cobalt
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Speed Point
Shank Type - Machining
Straight with Three Flats
Finish - Machining
Black Oxide
Step Increments
1/16 in

Product Description

The shanks on these step drill bits have three flats that help prevent the bits from slipping in the drill chuck during drilling. These cone-shaped bits have steps of increasing diameter marked along their cutting head. As each bit is pushed into a piece of sheet metal or other thin material, each step on the bit widens the hole. The bits also have a self-starting split point that prevents the bits from moving, or walking, when starting to drill, which eliminates the need for using a center drill to create a starter hole before drilling.
