DANFOSS

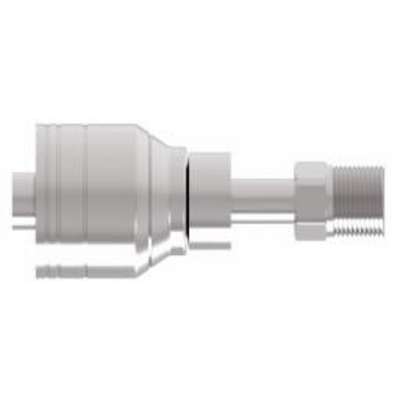

Danfoss Crimp Fitting, 04Z-B03, Straight Inverted Male Swivel, 1/4" x 3/16"
Technical Specifications
Key Specifications
Brand
DANFOSS
Compatible Hose Styles
H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215
Finish
Dura-Kote(TM)
Hose Cutoff Factor
2.2 in.
Hose Inside Diameter
1/4 in.
Item
Crimp Fitting
Material
Carbon Steel
Mfr. Part Number
04Z-B03
Package Quantity
1
Series
Z-Series
Shape
Straight
Shipping Weight
0.1 lb.
Style
Inverted Male Swivel
System of Measurement
Fractional
Thread Size
3/8"-24
Trade Name
WEATHERGRIP
Tube Size
3/16 in.
Working Pressure
Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.
Brand
DANFOSS
Series
Z-Series
Compatible Hose Styles
H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215
Shape
Straight
Finish
Dura-Kote(TM)
Shipping Weight
0.1 lb.
Hose Cutoff Factor
2.2 in.
Style
Inverted Male Swivel
Hose Inside Diameter
1/4 in.
System of Measurement
Fractional
Item
Crimp Fitting
Thread Size
3/8"-24
Material
Carbon Steel
Trade Name
WEATHERGRIP
Mfr. Part Number
04Z-B03
Tube Size
3/16 in.
Package Quantity
1
Working Pressure
Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.
General
Application
General purpose low, medium and high pressure hydraulics.
Application
General purpose low, medium and high pressure hydraulics.
Product Description
- Eaton Weatherhead's Z-Series Braided Hose Fittings are engineered for high pressure hydraulic systems.
- DURA-KOTE™ plating technology provides up to 1,000 hours of corrosion resistance.
- Bite the wire technology offers best in class connection and sealing.
- Low profile and short socket design offers greater routing flexibility.
- Class zero leakage SAE J1176 on approved hose styles.
- Over 550 part numbers available with a wide variety of metric and imperial threaded terminal ends.
- Eaton's MatchMate™ program provides identification markings on the hose, hose ends and crimp dies for quick and easy assembly.
Item Barcode
04Z-B03 1/4x3/16 M Inv Sw St
